064320 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 48POS 4ROW GREEN

Part	Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Note	Contact Termination	Features	Contact Type	Connector Type	Insulation Material	Accessory Type	For Use With/Related Products	Number of Rows

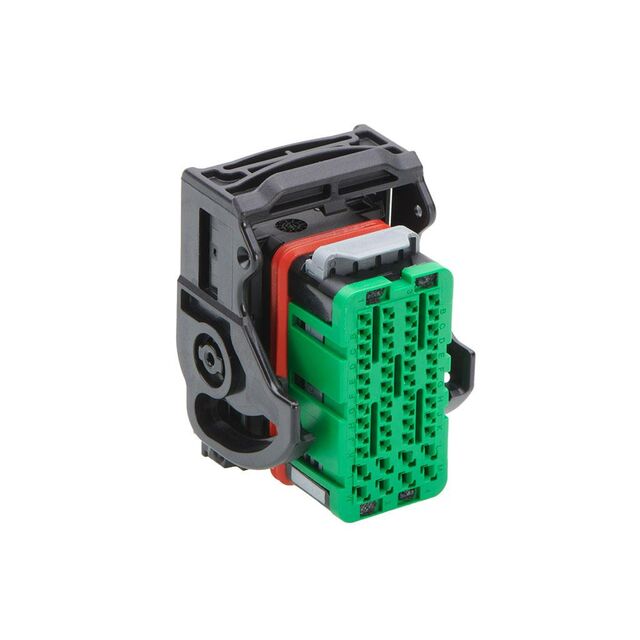

Molex 0643201315	Green	48	125 °C	-40 °C	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Crimp	Left Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled

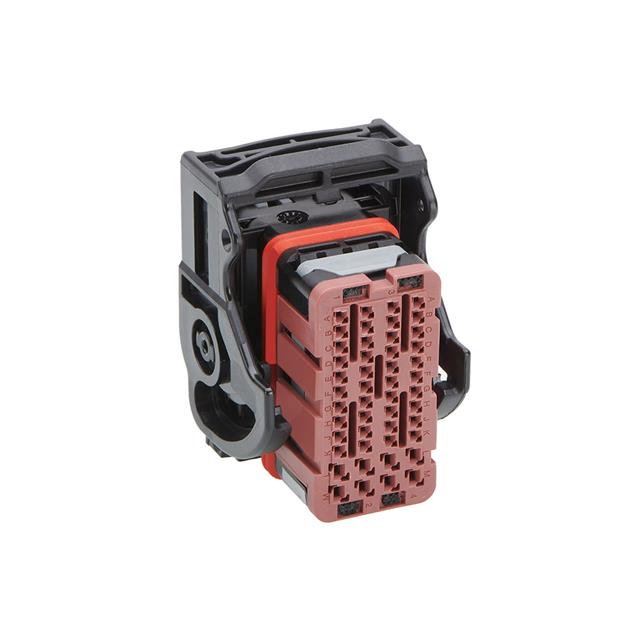

Molex 0643201319	Brown	48	125 °C	-40 °C	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Crimp	Left Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled

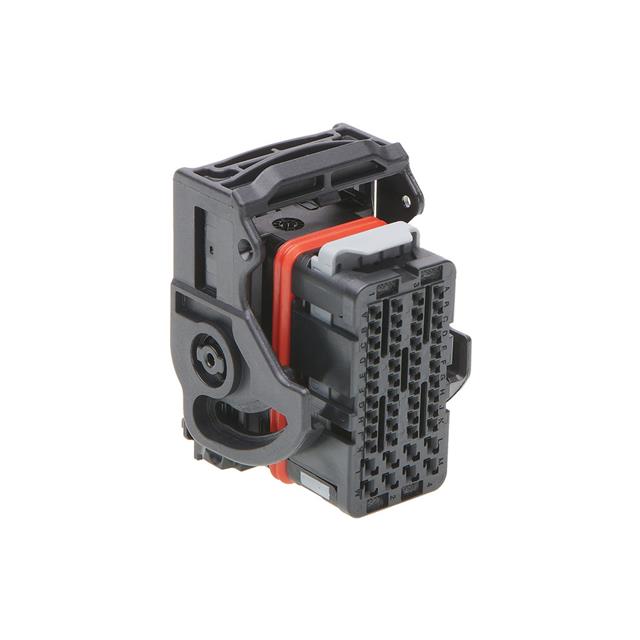

Molex 0643201311	Black	48	125 °C	-40 °C	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Crimp	Left Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled
Molex 0643203319	Brown	48	125 °C	-40 °C	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Crimp	Right Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled
Molex 0643201301		48											Cap (Cover)	CMC Connectors

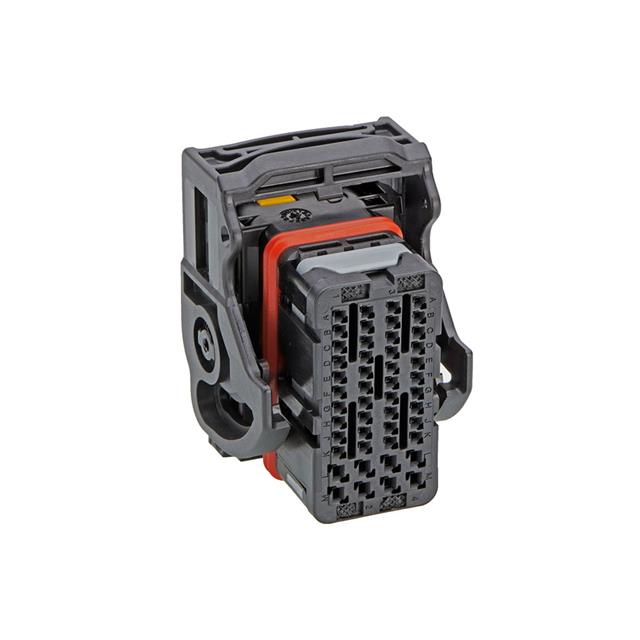

Molex 0643202311	Black	36	125 °C	-40 °C	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Crimp	Left Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled			3

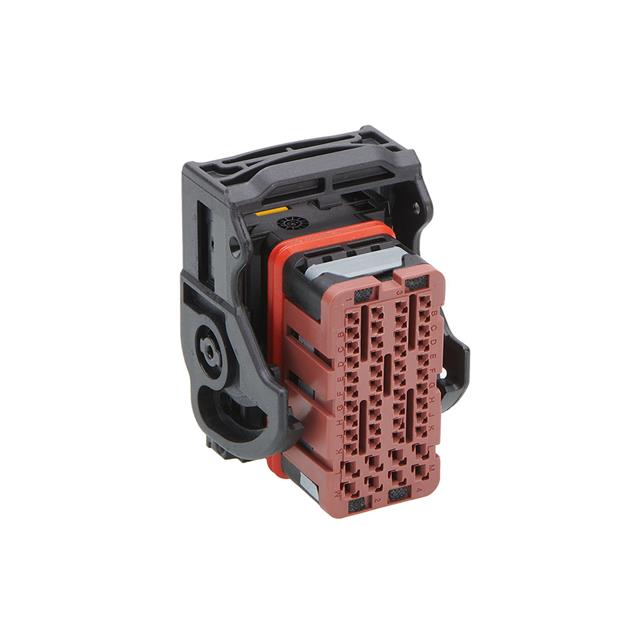

Molex 0643202319	Brown	36	125 °C	-40 °C	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Crimp	Left Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled			3
Molex 0643203311	Black	48	125 °C	-40 °C	Free Hanging (In-Line)		Contacts Not Included	Crimp	Right Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled
Molex 0643204311	Black	36	125 °C	-40 °C	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Crimp	Right Wire Output Sealed	Female Socket	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled
Molex 0643203315	Green	48	125 °C	-40 °C	Free Hanging (In-Line)	Lever Lock	Contacts Not Included	Crimp	Right Wire Output Sealed	Female Socket	Receptacle	Polyester
