717-078 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 78POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions	Number of Positions/Bay/Row	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Mounting Type	Card Type	Contact Type	Read Out	Contact Material
EDAC Inc. 717-078-525-201	Polyester Thermoplastic	2	Press-Fit	Black	30 Áin	0.76 Ám	3.96 mm	0.156 in	78	39	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	-40 C	105 ░C	2	Through Hole	Non Specified - Dual Edge	Cantilever	Dual	Copper Alloy
EDAC Inc. 717-078-520-201	Polyester Thermoplastic	2	Press-Fit	Black	30 Áin	0.76 Ám	3.96 mm	0.156 in	78	39	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	-40 C	105 ░C	2	Through Hole	Non Specified - Dual Edge	Cantilever	Dual	Copper Alloy
EDAC Inc. 717-078-545-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	3.96 mm	0.156 in	78	39	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	-40 C	105 ░C	2	Through Hole	Non Specified - Dual Edge	Cantilever	Dual	Copper Alloy
EDAC Inc. 717-078-522-201	Polyester Thermoplastic	2	Press-Fit	Black	30 Áin	0.76 Ám	3.96 mm	0.156 in	78	39	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	-40 C	105 ░C	2	Through Hole	Non Specified - Dual Edge	Cantilever	Dual	Copper Alloy
EDAC Inc. 717-078-540-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	3.96 mm	0.156 in	78	39	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	-40 C	105 ░C	2	Through Hole	Non Specified - Dual Edge	Cantilever	Dual	Copper Alloy

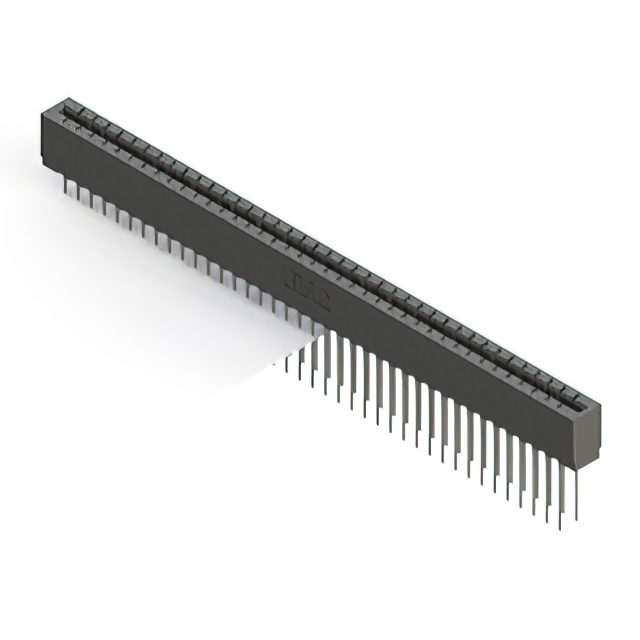

EDAC Inc. 717-078-541-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	3.96 mm	0.156 in	78	39	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	-40 C	105 ░C	2	Through Hole	Non Specified - Dual Edge	Cantilever	Dual	Copper Alloy
