190-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Color | Contact Type | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Number of Positions | Connector Style | Features | Current Rating (Amps) | Mounting Type | Termination | Material Flammability Rating | Number of Rows [custom] | Flange Feature | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

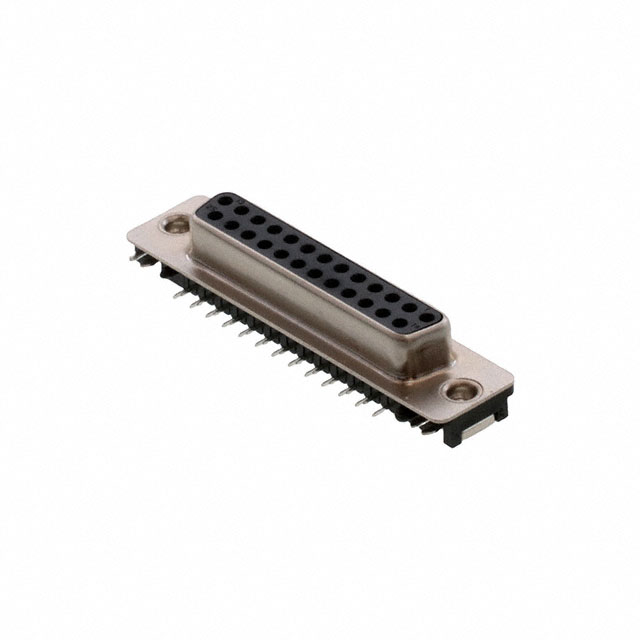

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | -55 C | 85 °C | 250 V | Black | Signal | Receptacle Female Sockets | B DB | 3 | Gold | 25 | D-Sub | Board Lock | 3 A | Panel Mount Right Angle Through Hole | Solder | UL94 V-0 | 2 | Housing/Shell | 4-40 | Nickel Plated Steel | 30 Áin | 0.76 Ám | |

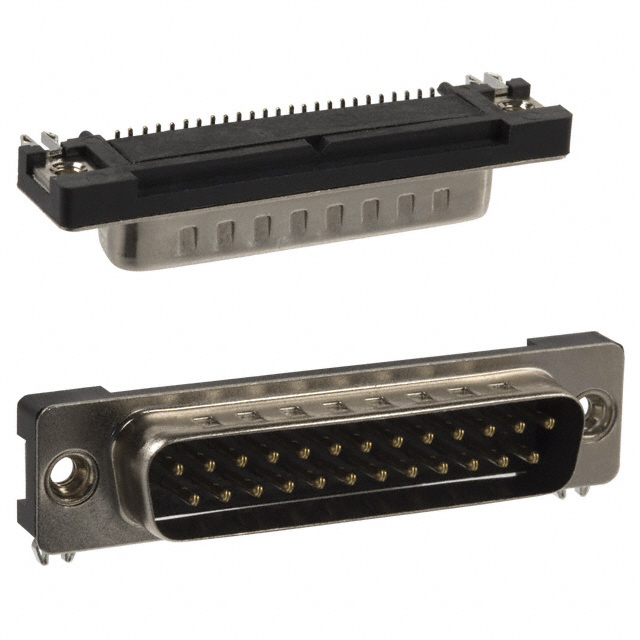

 NorComp Inc. | Polyamide (PA6T) Nylon 6T | Phosphor Bronze | 300 VDC | Black | Signal | Plug Male Pins | B DB | 3 | Gold | 25 | D-Sub | Board Guide Board Lock Grounding Indents Shielded | 5 A | Board Edge Right Angle Surface Mount | Solder | UL94 V-0 | 2 | Housing/Shell | 4-40 | Steel | Flash | ||||
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | Phosphor Bronze | -55 C | 105 ░C | 300 VDC | Black | Signal | Plug Male Pins | B DB | 3 | Gold | 25 | D-Sub | Board Guide Board Lock Grounding Indents Shielded | 5 A | Board Edge Right Angle Surface Mount | Solder | UL94 V-0 | 2 | Housing/Shell | 4-40 | Nickel Plated Steel | Flash |
