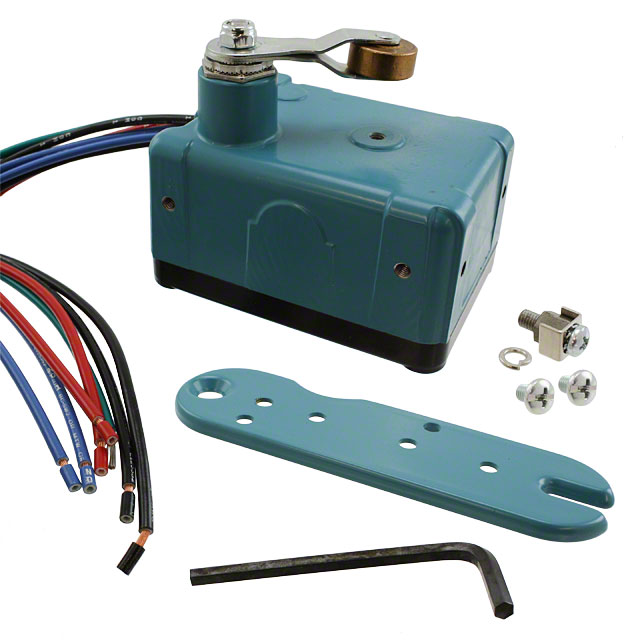

EXD-AR Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 10A 125V
| Part | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Actuator Type | Switch Function | Termination Style | Features | Current Rating (Amps) | Overtravel | Mounting Type | Circuit | Voltage Rating - DC | Differential Travel | Differential Travel | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 1247 gf | -40 °C | 71 °C | 125 V | Roller Side Rotary | On-Mom | Wire Leads | Explosion Proof | 10 A 300 mA | 25 ° | Chassis Mount | DPDT | 125 VDC | 2.8 mm | 0.11 in | 0.219 in | 5.6 mm |
