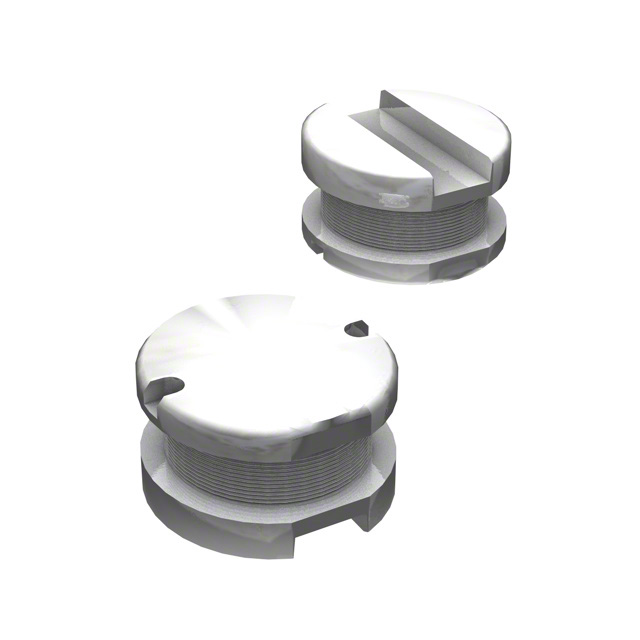

SDR1006 Series

Catalog

INDUCTOR: WIRE; SMD; 4.7UH; 4A; ±20%; Ø: 10MM; 36MΩ; H: 6MM

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Type	Frequency - Self Resonant	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Current Rating (Amps)	Inductance	Package / Case	Mounting Type	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Q @ Freq	Current - Saturation (Isat)	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. SDR1006-4R7ML	0.386 "	9.8 mm	9.8 mm	0.386 in	20 %	Drum Core Wirewound	40 MHz	Unshielded	7.96 MHz	33	0.228 "	5.8 mm	36 mOhm	4 A	4.7 ÁH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz
Bourns Inc. SDR1006-392KL	0.386 "	9.8 mm	9.8 mm	0.386 in	10 %	Drum Core Wirewound	1.2 MHz	Unshielded			0.228 "	5.8 mm	14.8 Ohm	110 mA	3.9 mH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz	32 252 kHz	280 mA
Bourns Inc. SDR1006-220ML	0.386 "	9.8 mm	9.8 mm	0.386 in	20 %	Drum Core Wirewound	13 MHz	Unshielded			0.228 "	5.8 mm		1.95 A	22 µH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz	2.52 MHz 25	3.5 A	100 mOhm
Bourns Inc. SDR1006-6R8ML	0.386 "	9.8 mm	9.8 mm	0.386 in	20 %	Drum Core Wirewound	32 MHz	Unshielded	7.96 MHz	33	0.228 "	5.8 mm		3.4 A	6.8 µH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz		5.9 A	44 mOhm
Bourns Inc. SDR1006-152KL	0.386 "	9.8 mm	9.8 mm	0.386 in	10 %	Drum Core Wirewound	1.7 MHz	Unshielded		31	0.228 "	5.8 mm	5 Ohm	190 mA	1.5 mH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz		450 mA		252 kHz
Bourns Inc. SDR1006-100ML	0.386 "	9.8 mm	9.8 mm	0.386 in	20 %	Drum Core Wirewound	21 MHz	Unshielded			0.228 "	5.8 mm		2.6 A	10 µH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz	2.52 MHz 30	5.1 A
Bourns Inc. SDR1006-180ML	0.386 "	9.8 mm	9.8 mm	0.386 in	20 %	Drum Core Wirewound	15 MHz	Unshielded			0.228 "	5.8 mm	90 mOhm	2.15 A	18 µH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz	2.52 MHz 30	3.8 A
Bourns Inc. SDR1006-221KL	0.386 "	9.8 mm	9.8 mm	0.386 in	10 %	Drum Core Wirewound	3.8 MHz	Unshielded			0.228 "	5.8 mm		660 mA	220 µH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz	12 796 kHz	1.1 A	730 mOhm
Bourns Inc. SDR1006-471KL	0.386 "	9.8 mm	9.8 mm	0.386 in	10 %	Drum Core Wirewound	2.5 MHz	Unshielded			0.228 "	5.8 mm	1.48 Ohm	0.42 A	470 µH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz	12 796 kHz	800 mA
Bourns Inc. SDR1006-560K	0.386 "	9.8 mm	9.8 mm	0.386 in	10 %	Drum Core Wirewound	7.5 MHz	Unshielded			0.228 "	5.8 mm	190 mOhm	1.15 A	56 µH	Nonstandard	Surface Mount	Ferrite	125 °C	-40 C	1 kHz	2.52 MHz 20	2.1 A
