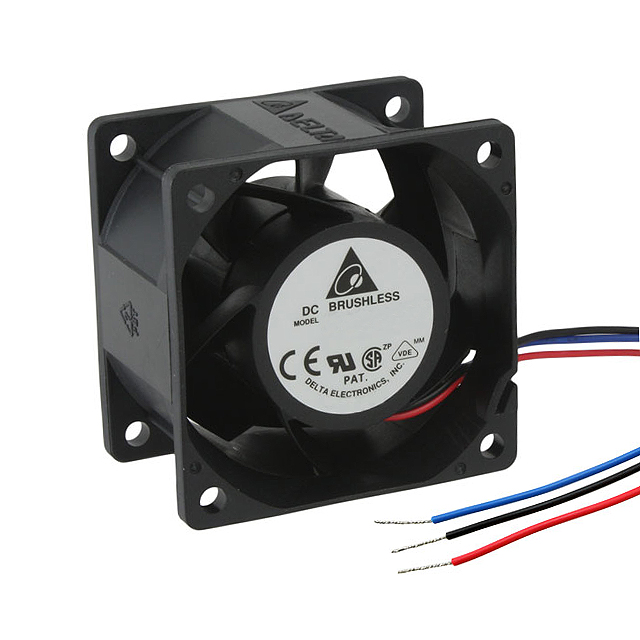

PFB0612 Series

Catalog

FAN AXIAL 60X38MM 12VDC WIRE

Part	Material - Blade	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Noise	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	RPM	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Bearing Type	Width [y]	Termination	Approval Agency	Voltage - Rated	Fan Type	Weight	Weight	Features	Ingress Protection	Static Pressure

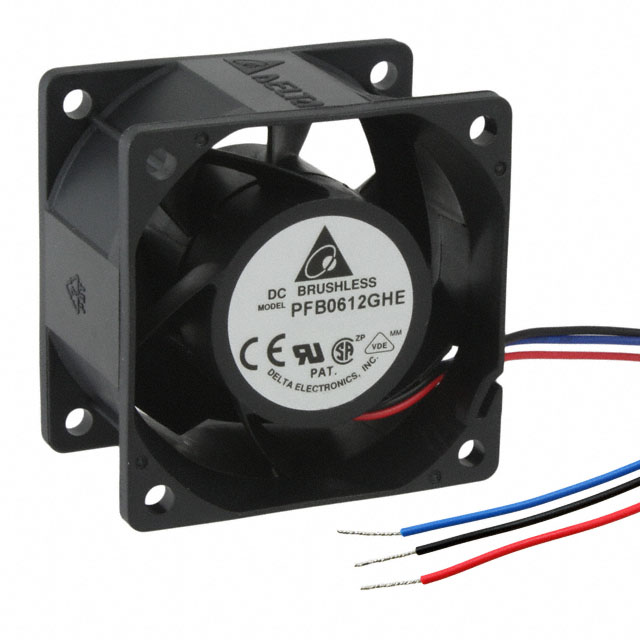

Delta Electronics PFB0612GHE-R00	Plastic	Plastic	40 °C 50000 Hrs	0.85 A	7 V	13.2 VDC	57.5 dB	1.444 in H2O	359.7 Pa	-10 °C	60 °C	10.2 W	10000 RPM	60 mm	60 mm	1.56 mł/min	55.6 CFM	Ball	38 mm	3 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb	Locked Rotor Sensor
Delta Electronics PFB0612GHE	Plastic	Plastic	40 °C 50000 Hrs	0.85 A	7 V	13.2 VDC	57.5 dB	1.444 in H2O	359.7 Pa	-10 °C	60 °C	10.2 W	10000 RPM	60 mm	60 mm	1.56 mł/min	55.6 CFM	Ball	38 mm	2 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb
Delta Electronics PFB0612GHE-T500	Plastic	Plastic	40 °C 50000 Hrs	0.85 A	7 V	13.2 VDC	57.5 dB	1.444 in H2O	359.7 Pa	-10 °C	60 °C	10.2 W	10000 RPM	60 mm	60 mm	1.56 mł/min	55.6 CFM	Ball	38 mm	2 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb		IP55 - Dust Protected Water Resistant

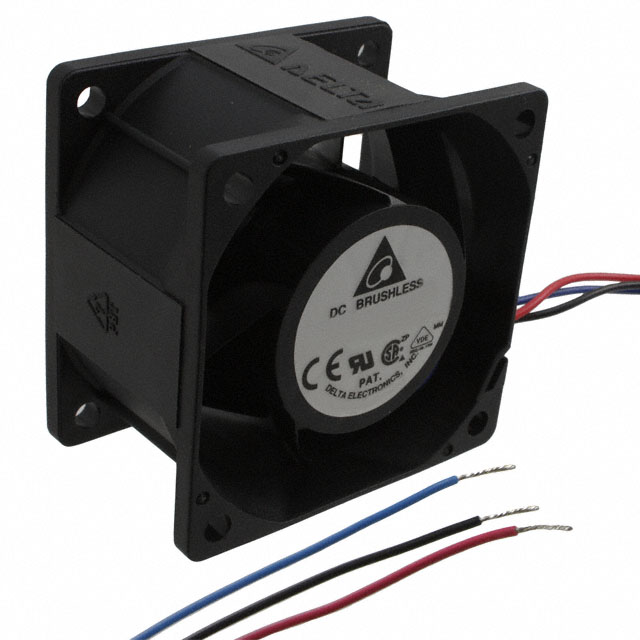

Delta Electronics PFB0612UHE-T50F	Plastic	Plastic	40 °C 50000 Hrs	1.4 A	7 V	13.2 VDC	61.5 dB(A)	530.3 Pa		-10 °C	60 °C	16.8 W	12000 RPM	60 mm	60 mm	1.9 m³/min	67.8 CFM	Ball	38 mm	3 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb	Locked Rotor Protection Speed Sensor (Tach)	IP55 - Dust Protected Water Resistant	2.129 in H2O
Delta Electronics PFB0612SHE-R00	Plastic	Plastic	70000 Hrs	480 mA	7 V	13.2 VDC	50.5 dB(A)	228.7 Pa		-10 °C	60 °C	5.76 W	8000 RPM	60 mm	60 mm	1.22 m³/min	43.6 CFM	Ball	38 mm	3 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb	Locked Rotor Sensor		0.918 in H2O
Delta Electronics PFB0612EHE-F00	Plastic	Plastic	70000 Hrs	0.63 A	7 V	13.2 VDC	54 dB	299.7 Pa		-10 °C	60 °C	7.56 W	9000 RPM	60 mm	60 mm	1.41 mł/min	50.4 CFM	Ball	38 mm	3 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb	Locked Rotor Protection Speed Sensor (Tach)		1.203 in H2O
Delta Electronics PFB0612UHE-R00	Plastic	Plastic	40 °C 50000 Hrs	1.4 A	7 V	13.2 VDC	61.5 dB(A)	530.3 Pa		-10 °C	60 °C	16.8 W	12000 RPM	60 mm	60 mm	1.9 m³/min	67.8 CFM	Ball	38 mm	3 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb	Locked Rotor Sensor		2.129 in H2O
Delta Electronics PFB0612SHE	Plastic	Plastic	70000 Hrs	480 mA	7 V	13.2 VDC	50.5 dB(A)	228.7 Pa		-10 °C	60 °C	5.76 W	8000 RPM	60 mm	60 mm	1.22 m³/min	43.6 CFM	Ball	38 mm	2 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb			0.918 in H2O

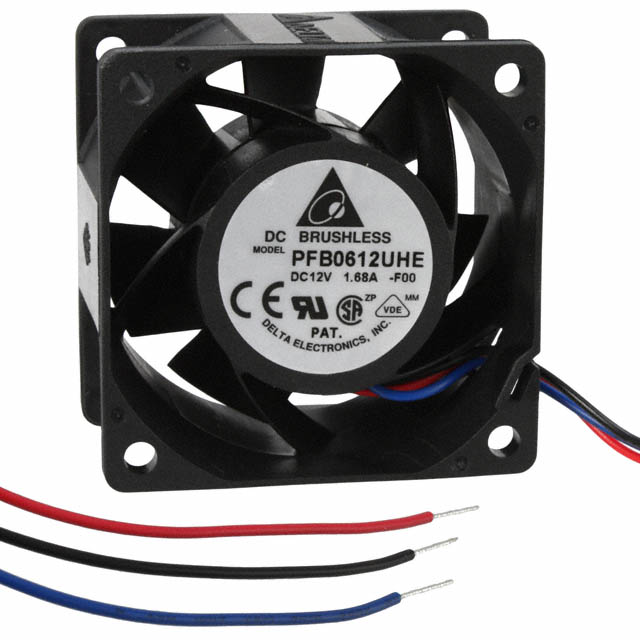

Delta Electronics PFB0612UHE-F00	Plastic	Plastic	40 °C 50000 Hrs	1.4 A	7 V	13.2 VDC	61.5 dB(A)	530.3 Pa		-10 °C	60 °C	16.8 W	12000 RPM	60 mm	60 mm	1.9 m³/min	67.8 CFM	Ball	38 mm	3 Wire Leads	CE CSA UL VDE	12 VDC	Tubeaxial	130.18 g	0.287 lb	Locked Rotor Protection Speed Sensor (Tach)		2.129 in H2O
