ST-RJ11 Series

Catalog

RJ11 MINI BREAKOUT BOARD

Part	Material	Package Accepted	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Board Thickness	Board Thickness	Proto Board Type	Number of Positions	Pitch	Pitch

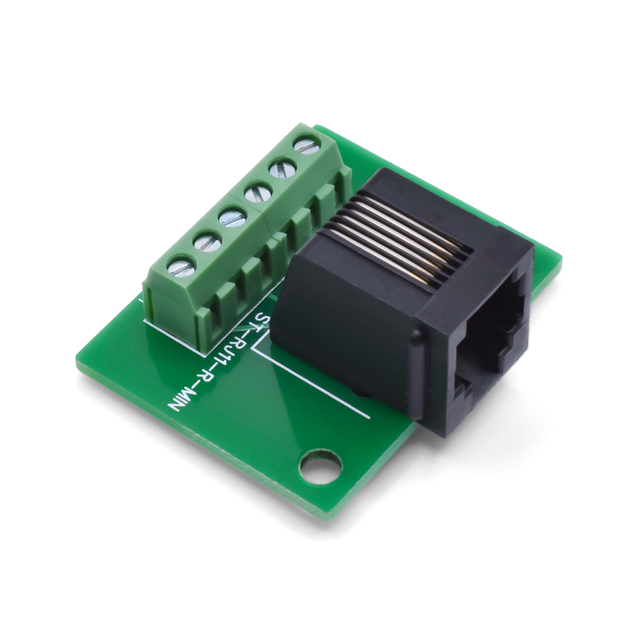

SchmalzTech, LLC ST-RJ11-R-MIN	FR4 Epoxy Glass	RJ11	30.48 mm	1.5 "	1.2 in	38.1 mm	0.063 in	1.6 mm	Connector to Terminal Block	6

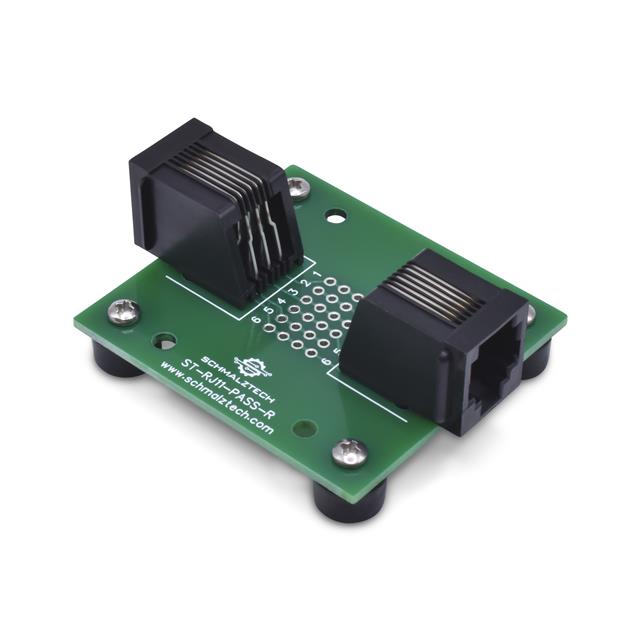

SchmalzTech, LLC ST-RJ11-PASS-R-FT		RJ11	50.8 mm	1.8 in	2 in	45.72 mm			Connector to Plated Through Hole	6	0.1 "	2.54 mm

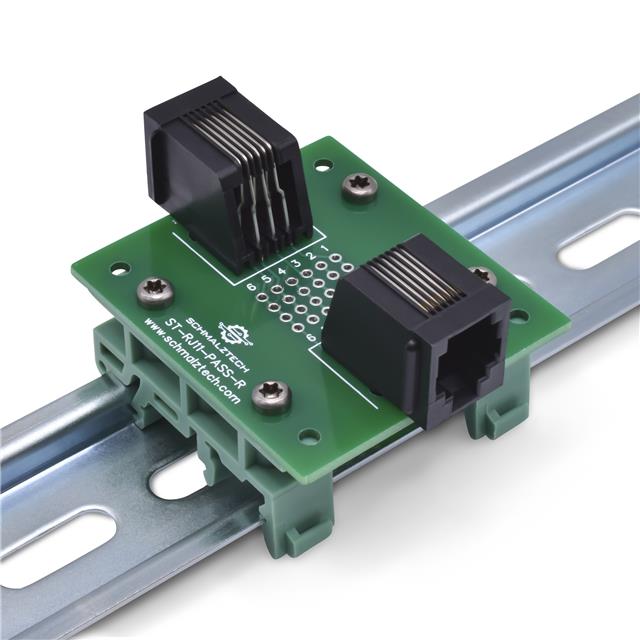

SchmalzTech, LLC ST-RJ11-PASS-R-DIN		RJ11	50.8 mm	1.8 in	2 in	45.72 mm			Connector to Plated Through Hole	6	0.1 "	2.54 mm

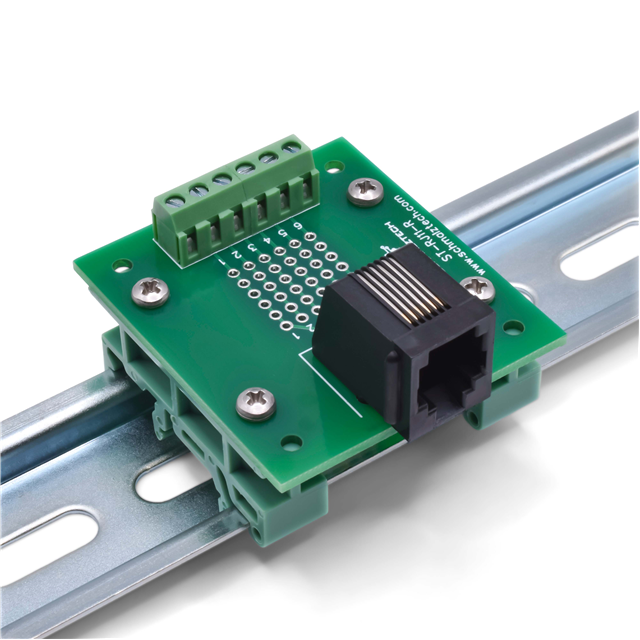

SchmalzTech, LLC ST-RJ11-R-DIN	FR4 Epoxy Glass	RJ11	50.8 mm	1.8 in	2 in	45.72 mm	0.063 in	1.6 mm	Connector to Terminal Block	6

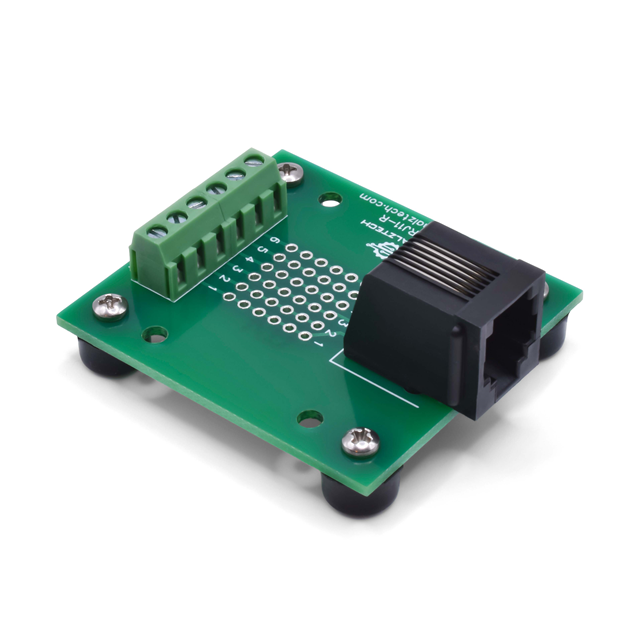

SchmalzTech, LLC ST-RJ11-R-FT	FR4 Epoxy Glass	RJ11	50.8 mm	1.8 in	2 in	45.72 mm	0.063 in	1.6 mm	Connector to Terminal Block	6	0.1 "	2.54 mm
