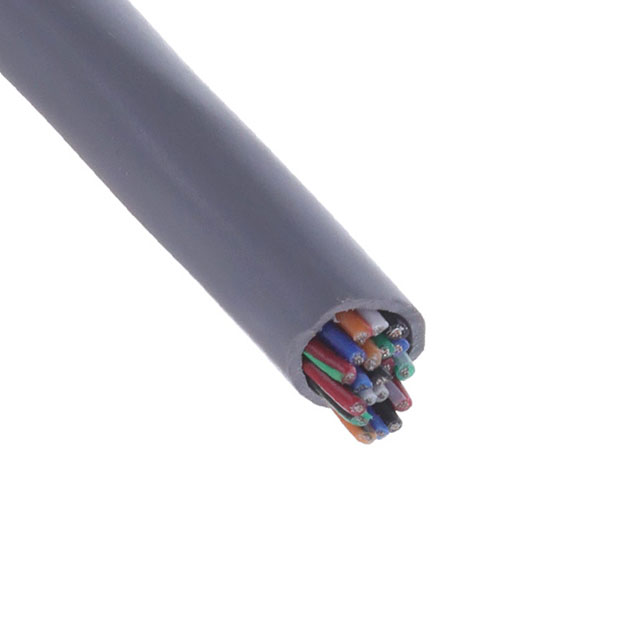

6308 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, SHIELDED, 20 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Number of Conductors | Voltage | Shield Type | Conductor Insulation | Jacket Color | Jacket (Insulation) Material | Features | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.813 mm | 0.032 in | 7.57 mm | 0.298 " | 24 AWG | Multi-Conductor | 152.4 m | 500 ft | 7 | 32 AWG | 80 °C | -20 ░C | UL Style 2464 | 20 | 300 VDC | Foil | Poly-Vinyl Chloride (PVC) | Slate | Poly-Vinyl Chloride (PVC) | Drain Wire | Copper Tinned |
