HLMP-CM3 Series

Catalog

LED GREEN CLEAR T-1 3/4 T/H

Part	Viewing Angle	Supplier Device Package	Height (Max) [z]	Wavelength - Dominant	Current - Test	Lens Transparency	Wavelength - Peak	Mounting Type	Millicandela Rating	Lens Style	Color	Lens Size	Lens Size	Voltage - Forward (Vf) (Typ)	Package / Case	Configuration	Lens Color	Lens Size [diameter]	Height (Max) [Max] [z]

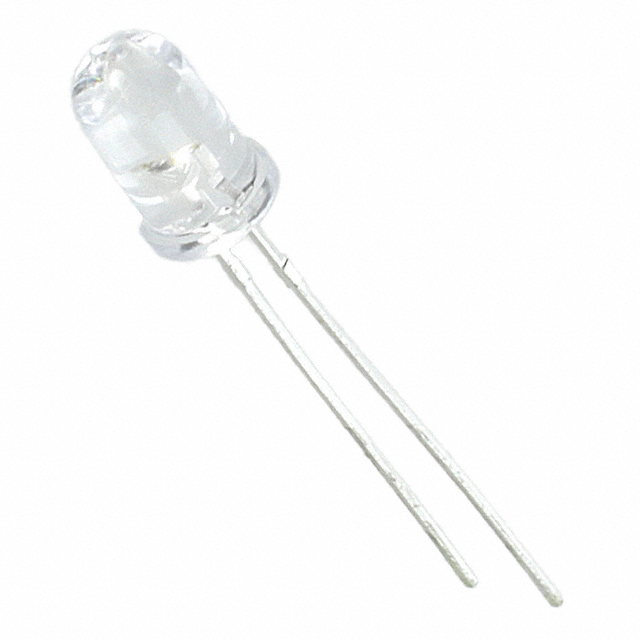

Broadcom Limited HLMP-CM3A-Z10DD	30 °	T-1 3/4	8.9 mm	525 nm	20 mA	Clear	516 nm	Through Hole	16500 mcd	Round with Domed Top	Green	5 mm	T-1 3/4	3.2 V	Radial	Standard	Colorless

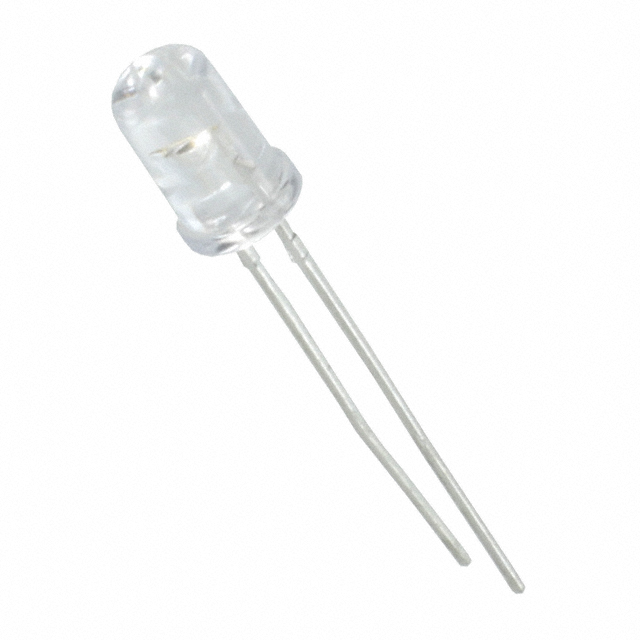

Broadcom Limited HLMP-CM3G-Y10DD	30 °	T-1 3/4	8.9 mm	525 nm	20 mA	Clear	517 nm	Through Hole	15150 mcd	Round with Domed Top	Green	5 mm	T-1 3/4	3.1 V	Radial	Standard	Colorless
Broadcom Limited HLMP-CM3B-Z10DD	30 °	T-1 3/4	12.25 mm	525 nm	20 mA	Clear	516 nm	Through Hole	16500 mcd	Round with Domed Top	Green	5 mm	T-1 3/4	3.2 V	Radial	Standard	Colorless
Broadcom Limited HLMP-CM3A-Z1CDD	30 °	T-1 3/4 (5mm)	8.9 mm	525 nm	20 mA	Clear	516 nm	Through Hole	16500 mcd	Round with Domed Top	Green			3.2 V	Radial			5 mm
Broadcom Limited HLMP-CM3H-Y10DD	30 °	T-1 3/4		525 nm	20 mA	Clear	517 nm	Through Hole	15150 mcd	Round with Domed Top	Green	5 mm	T-1 3/4	3.1 V	Radial	Standard	Colorless		12.18 mm
