796700 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

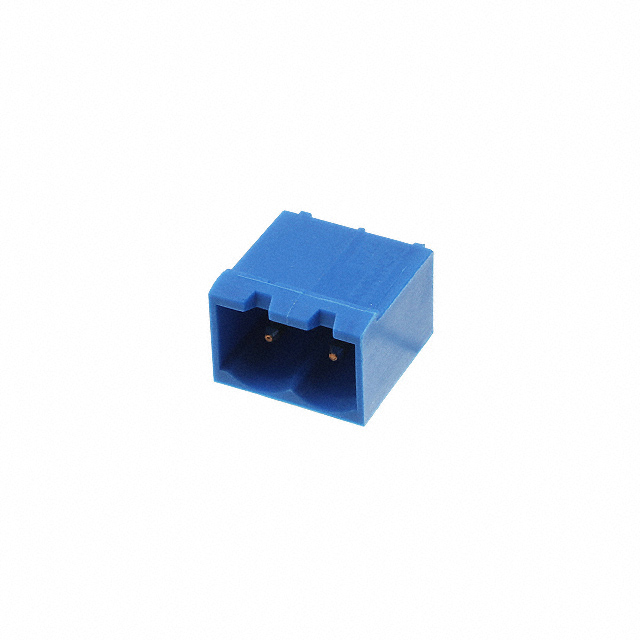

TERM BLOCK HDR 2POS 90DEG 5MM

Part	Material Flammability Rating	Contact Material	Contact Tail Length	Contact Tail Length	Insulation Height [z]	Insulation Height [z]	Number of Positions	Header Orientation	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Positions Per Level	Color	Mounting Type	Number of Levels	Voltage - UL	Termination Style	Type	Positions Per Level [custom]
TE Connectivity AMP Connectors 796700-2	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	2	90° Right Angle	0.197 in	5 mm	-40 C	110 °C	Tin	2	Blue	Through Hole	1	300 V	Solder	Header Male Pins Shrouded (4 Side)
TE Connectivity AMP Connectors 796700-3	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm		90° Right Angle	0.197 in	5 mm	-40 C	110 °C	Tin	3	Blue	Through Hole	1	300 V	Solder	Header Male Pins Shrouded (4 Side)
TE Connectivity AMP Connectors 796700-5	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	5	90° Right Angle	0.197 in	5 mm	-40 C	110 °C	Tin	5	Blue	Through Hole	1	300 V	Solder	Header Male Pins Shrouded (4 Side)
TE Connectivity AMP Connectors 796700-7	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	7	90° Right Angle	0.197 in	5 mm	-40 C	110 °C	Tin		Blue	Through Hole	1	300 V	Solder	Header Male Pins Shrouded (4 Side)	7
TE Connectivity AMP Connectors 1-796700-0	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	10	90° Right Angle	0.197 in	5 mm	-40 C	110 °C	Tin	10	Blue	Through Hole	1	300 V	Solder	Header Male Pins Shrouded (4 Side)
TE Connectivity AMP Connectors 796700-8	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	8	90° Right Angle	0.197 in	5 mm	-40 C	110 °C	Tin	8	Blue	Through Hole	1	300 V	Solder	Header Male Pins Shrouded (4 Side)
