470057CY Series

Catalog

CABLE 5COND 19AWG CLEAR SHLD

Part	Shield Coverage	Length	Length	Cable Type	Number of Conductors	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Type	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Wire Gauge	Conductor Material	Length [x]	Length [x]	Length	Length	Spool Size	Spool Size

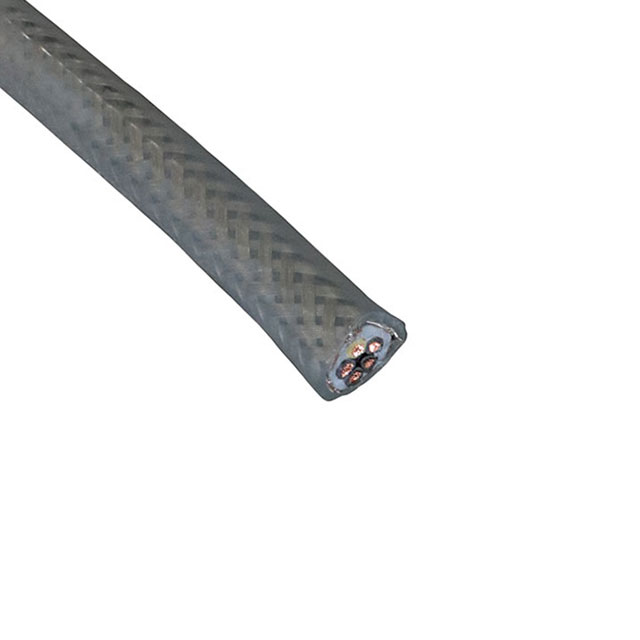

ALPHA WIRE 470057CY CL321	80 %	164 ft	50 m	Multi-Conductor	5	Clear	300 V	0.007 in	30	Poly-Vinyl Chloride (PVC)	Braid	Chemical Resistant Oil Resistant UV Resistant	0.0374 in	0.95 mm	9.45 mm	0.372 in	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	19 AWG	Copper Bare

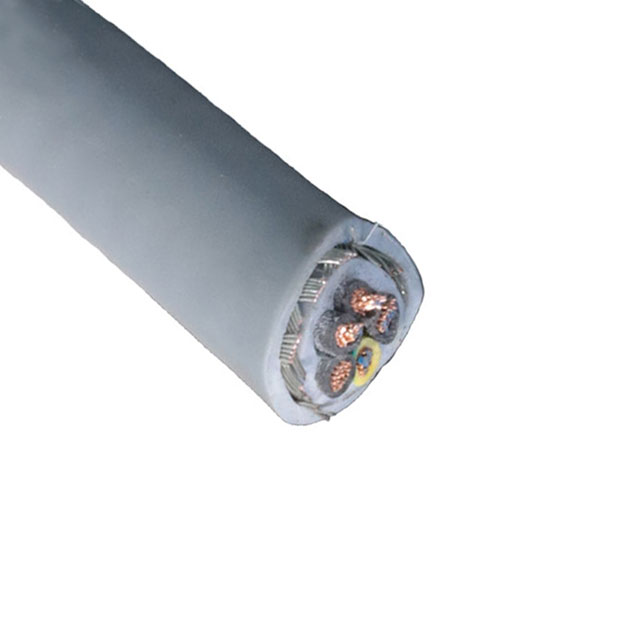

ALPHA WIRE 470057CY GE432	80 %	32.81 ft 65.62 ft 98.43 ft	10 m 20 m 30 m 984.3 ft	Multi-Conductor	5	Gray	300 V	0.007 in	30	Poly-Vinyl Chloride (PVC)	Braid	Chemical Resistant Oil Resistant UV Resistant	0.0374 in	0.95 mm	9.45 mm	0.372 in	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	19 AWG	Copper Bare	1 m	3.28 ft	300 m	Enter Number of Meters in Order Quantity	984.3 ft	300 m
ALPHA WIRE 470057CY CL432	80 %	32.81 ft 65.62 ft	10 m 20 m	Multi-Conductor	5	Clear	300 V	0.007 in	30	Poly-Vinyl Chloride (PVC)	Braid	Chemical Resistant Oil Resistant UV Resistant	0.0374 in	0.95 mm	9.45 mm	0.372 in	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	19 AWG	Copper Bare	1 m	3.28 ft
ALPHA WIRE 470057CY GE321	80 %	164 ft	50 m	Multi-Conductor	5	Gray	300 V	0.007 in	30	Poly-Vinyl Chloride (PVC)	Braid	Chemical Resistant Oil Resistant UV Resistant	0.0374 in	0.95 mm	9.45 mm	0.372 in	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	19 AWG	Copper Bare
