YW08015012 Series
Manufacturer: YS TECH USA
Beta
⌘K

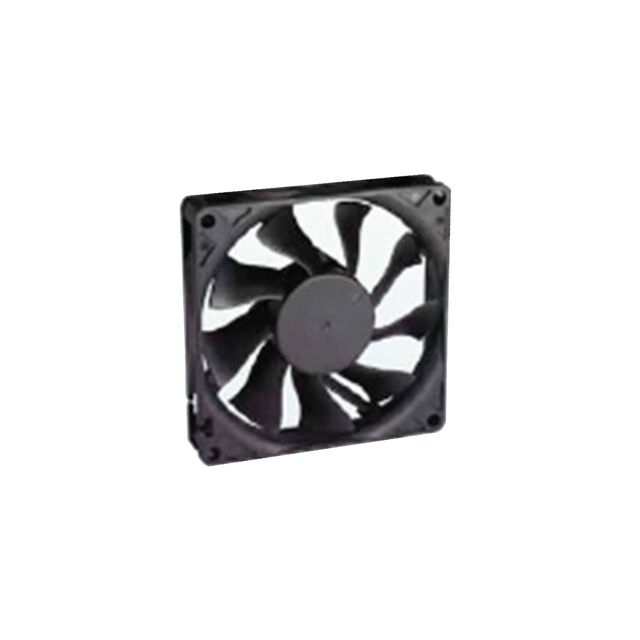

FAN AXIAL 80X15MM 12VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | RPM | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure | Bearing Type | Air Flow | Air Flow | Power (Watts) | Voltage - Rated | Fan Type | Width [y] | Noise | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | 70 mA | Polybutylene Terephthalate (PBT) | 7 V | 13.2 VDC | 80000 Hrs | 2100 RPM | 80 mm | 80 mm | 0.1 in H2O | 24.9 Pa | Ball | 23.5 CFM | 0.658 mł/min | 840 mW | 12 VDC | Tubeaxial | 15 mm | 19 dB(A) | 2 Wire Leads |
