1571926 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

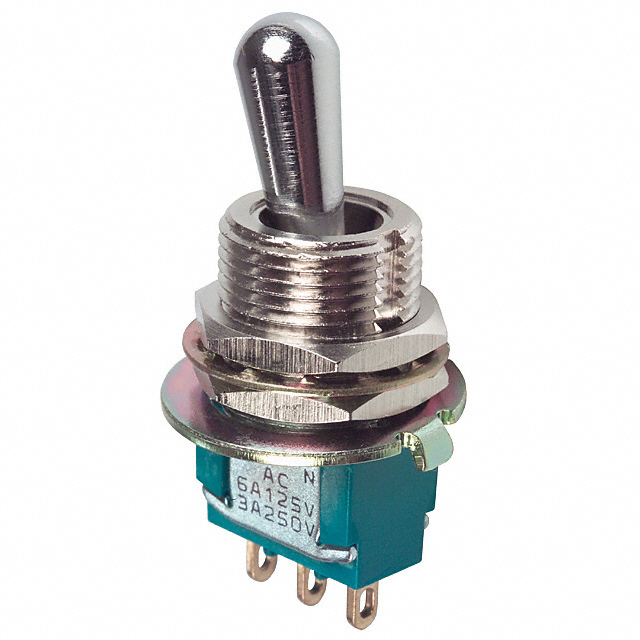

SWITCH TOGGLE DPDT 6A 125V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Length [x]	Illumination	Termination Style	Mounting Type	Bushing Thread	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Features
TE Connectivity AMP Connectors 1-1571926-5	Copper Alloy Chrome Plated	80000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	DPDT	11.5 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-On	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 1571926-3	Copper Alloy Chrome Plated	80000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	SPDT	11.5 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-On	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 3-1571926-1	Copper Alloy Chrome Plated	60000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	4PDT	11.5 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-Off-On	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 1-1571926-7	Copper Alloy Chrome Plated	60000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	DPDT	11.5 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-Off-On	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 1571926-6	Copper Alloy Chrome Plated	60000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	SPDT	11.5 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	Mom-Off-Mom	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 1-1571926-0	Copper Alloy Chrome Plated	80000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	SPDT	17.4 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-On	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 2-1571926-7	Copper Alloy Chrome Plated	80000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	3PDT	11.5 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-On	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 1-1571926-9	Copper Alloy Chrome Plated	60000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	DPDT	11.5 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-Mom	4 A 6 A	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 2-1571926-4	Copper Alloy Chrome Plated	80000 Cycles	125 V	Standard Round	11.94 mm	80 °C	-20 ░C	DPDT	17.4 mm	Non-Illuminated	Solder Lug	Panel Mount	15/32-32	28 V	On-On	4 A 6 A	Epoxy Sealed Terminals
