MST 250 Series

"MST 250, 0.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Manufacturer: SCHURTER Inc.

Catalog

"MST 250, 0.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Catalog

"MST 250, 0.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Part	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Melting I²t	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Fuse Type	Response Time	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Package / Case	Current Rating (Amps)	Melting I˛t
SCHURTER Inc. 0034.6610	8.5 mm	8.5 mm	0.335 in	0.335 in	0.8	CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	0.315 A
SCHURTER Inc. 0034.6604	8.5 mm	8.5 mm	0.335 in	0.335 in	0.06	CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	80 mA

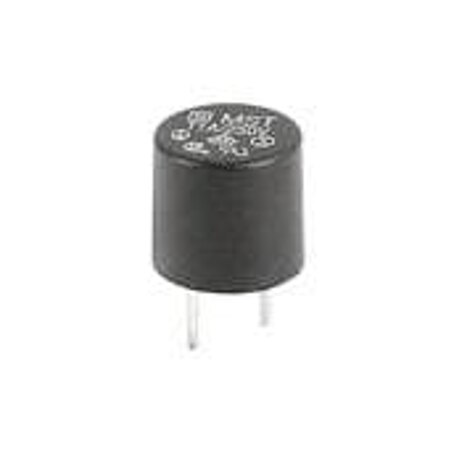

SCHURTER Inc. 0034.6612	8.5 mm	8.5 mm	0.335 in	0.335 in	2.5 I²t	CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	0.5 A
SCHURTER Inc. 0034.6802	8.5 mm	8.5 mm	0.335 in	0.335 in	0.03 I²t	CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	50 mA
SCHURTER Inc. 0034.6713	8.5 mm	8.5 mm	0.335 in	0.335 in	4 I²t	CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	0.63 A
SCHURTER Inc. 0034.6706	8.5 mm	8.5 mm	0.335 in	0.335 in	0.12 I²t	CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	0.125 Amps
SCHURTER Inc. 0034.6809	8.5 mm	8.5 mm	0.335 in	0.335 in		CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	0.25 A	0.6

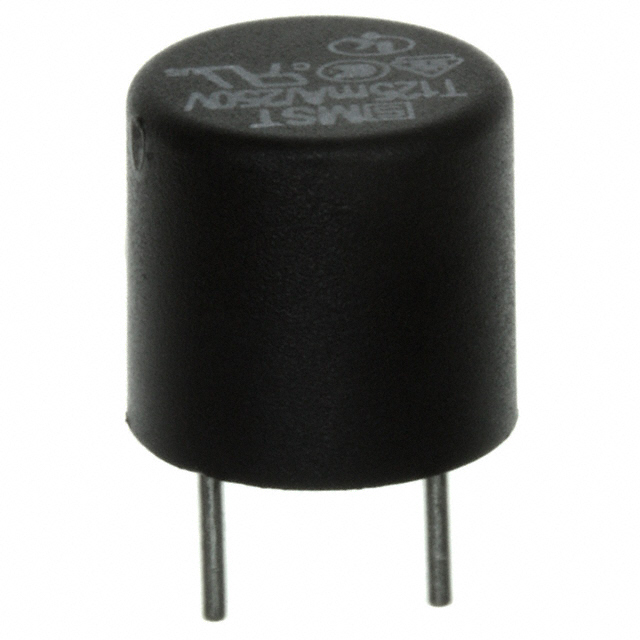

SCHURTER Inc. 0034.6606	8.5 mm	8.5 mm	0.335 in	0.335 in	0.12 I²t	CCC cURus KC VDE	Through Hole	-55 C	125 °C	125 VDC	Board Mount (Cartridge Style Excluded)	Slow Blow	35 A 50 A	250 V	Can Radial Vertical	0.125 Amps	0.12
