2355179 Series

Catalog

5P,2MM,BRK HDR,SRVT,2.8,0.38AU,T

Part	Voltage Rating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Material	Insulation Color	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Features	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Termination	Number of Positions Loaded	Contact Type	Contact Finish - Mating	Connector Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Current Rating (Amps)	Number of Positions

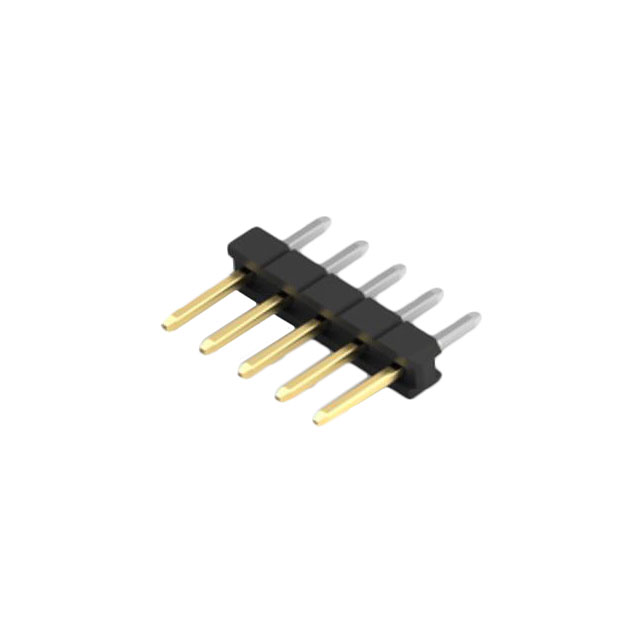

TE Connectivity Raychem Cable Protection 2355179-5	125 VAC	8.3 mm	0.327 in	0.11 in	2.79 mm	UL94 V-0	1.5 mm	0.059 "	Thermoplastic	Black	Push-Pull	0.079 in	2 mm	4 mm	0.157 in	Square	Pick and Place	1	2 çm	78.7 çin	Unshrouded	Solder	All	Male Pin	Gold	Breakaway Header	Copper Alloy	125 °C	-40 °C	Through Hole	15 µin	0.38 µm	Tin	2 A

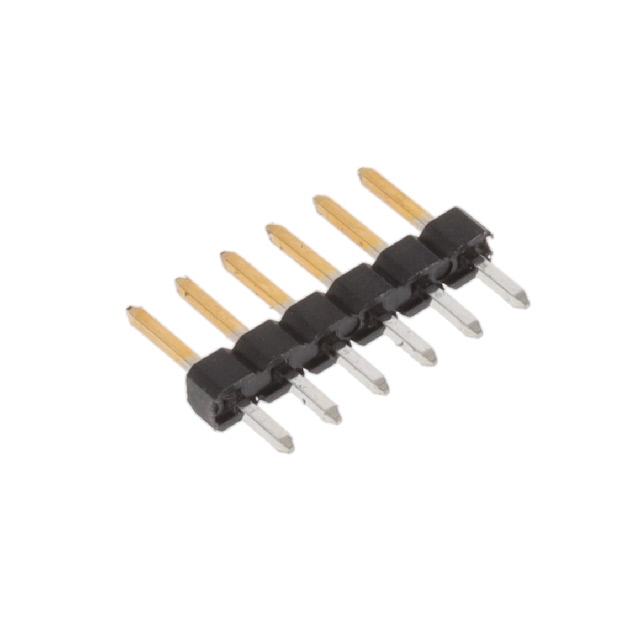

TE Connectivity Raychem Cable Protection 2355179-6	125 VAC	8.3 mm	0.327 in	0.11 in	2.79 mm	UL94 V-0	1.5 mm	0.059 "	Thermoplastic	Black	Push-Pull	0.079 in	2 mm	4 mm	0.157 in	Square	Pick and Place	1	2 çm	78.7 çin	Unshrouded	Solder	All	Male Pin	Gold	Breakaway Header	Copper Alloy	125 °C	-40 °C	Through Hole	15 µin	0.38 µm	Tin	2 A	6
