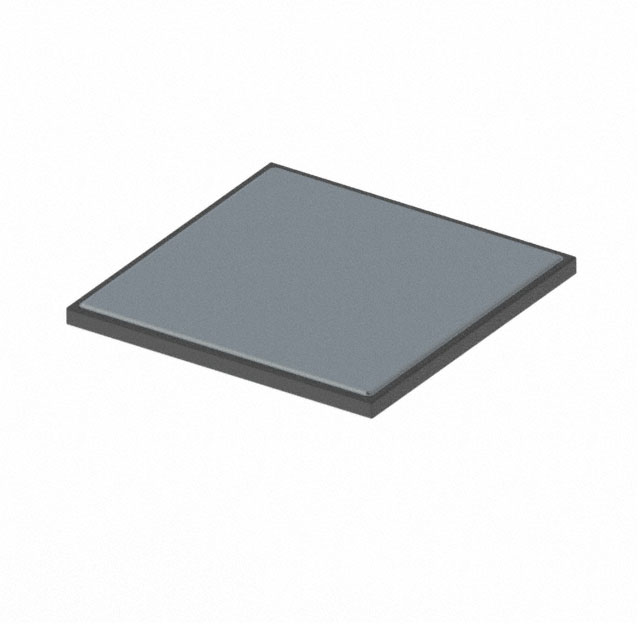

SD175 Series

Catalog

DIODE SCHOTTKY 30V 30A DIE

Part	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Capacitance @ Vr, F	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction
SMC Diode Solutions SD175SA30B.T2	200 mA 500 ns	30 V	30 A	Die	4 mA	Surface Mount	150 °C	-55 °C	Die	2200 pF	Schottky
SMC Diode Solutions SD175SB45B.T	200 mA 500 ns	45 V	30 A	Die	800 µA	Surface Mount	175 ░C	-55 C	Die	1600 pF	Schottky	640 mV
SMC Diode Solutions SD175SB45B.T1	200 mA 500 ns	45 V	30 A	Die	800 µA	Surface Mount	175 ░C	-55 C	Die	1600 pF	Schottky	640 mV
SMC Diode Solutions SD175SA30B.T1	200 mA 500 ns	30 V	30 A	Die	4 mA	Surface Mount	150 °C	-55 °C	Die	2200 pF	Schottky
SMC Diode Solutions SD175SC200A.T1	200 mA 500 ns	200 V	30 A	Die	700 µA	Surface Mount	200 C	-55 C	Die	600 pF	Schottky		920 mV
SMC Diode Solutions SD175SB45A.T2	200 mA 500 ns	45 V	30 A	Die	800 µA	Surface Mount	175 ░C	-55 C	Die	1600 pF	Schottky	640 mV
SMC Diode Solutions SD175SA45A.T2	200 mA 500 ns	45 V	30 A	Die	3 mA	Surface Mount	150 °C	-55 °C	Die	1600 pF	Schottky	560 mV
SMC Diode Solutions SD175SA30A.T1	200 mA 500 ns	30 V	30 A	Die	4 mA	Surface Mount	150 °C	-55 °C	Die	2200 pF	Schottky
SMC Diode Solutions SD175SC100A.T	200 mA 500 ns	100 V	30 A	Die	750 µA	Surface Mount			Die	1000 pF	Schottky		840 mV	200 °C
SMC Diode Solutions SD175SB45A.T	200 mA 500 ns	45 V	30 A	Die	800 µA	Surface Mount	175 °C		Die	1600 pF	Schottky	640 mV
