8241A Series
Manufacturer: Belden Inc.
Beta
⌘K

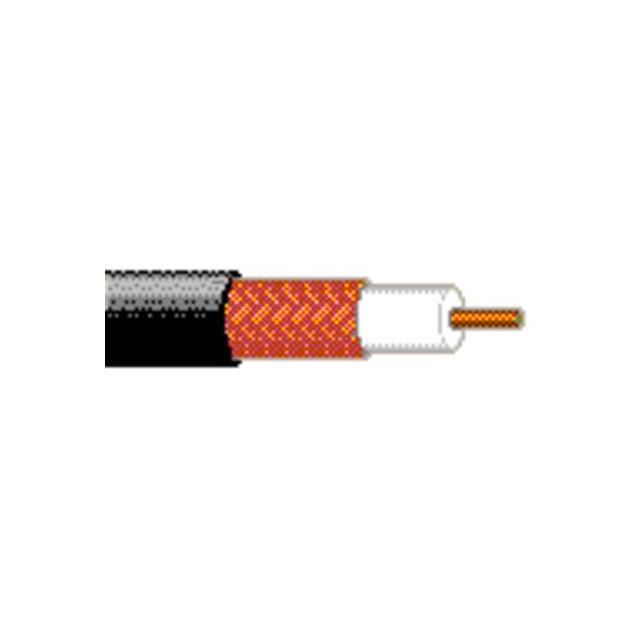

RG-59/U TYPE COAX
| Part | VoP, Velocity of Propagation | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | Cable Type | Shield Type | Usage | Jacket (Insulation) Material | Jacket Color | Length [x] | Length [x] | Cable Group | Conductor Strand | Wire Gauge | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 66 | Copper Bare | 3.71 mm | 0.146 in | Copper Coated Steel | -40 C | 75 ░C | 95 % | Coaxial | Braid | Video | Poly-Vinyl Chloride (PVC) | Black | 304.8 m | 1000 ft | RG-59 | Solid | 23 AWG | 75 Ohms |
