MB60S18 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

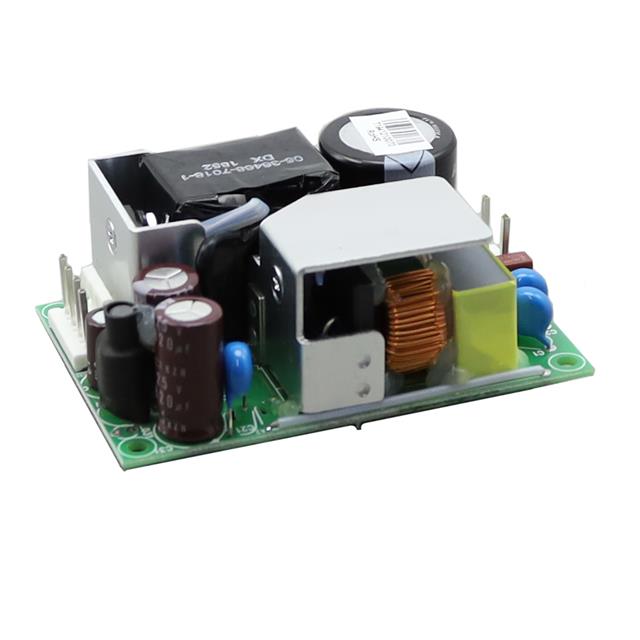

AC/DC POWER SUPPLY SINGLE-OUT 18V 3.33A 60W 6-PIN
| Part | Minimum Load Required | Voltage - Output 1 | Features | Power (Watts) | Applications | Efficiency | Current - Output 1 | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Number of Outputs | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 18 V | Universal Input | 60 W | Medical | 85 % | 3.33 A | Open Frame | 25.4 mm | 3 in | 25.4 mm | 50.8 mm | 50.8 mm | 76.2 mm | Chassis Mount | 1 | CE | 264 VAC | 90 VAC | -10 °C | 80 ¯C | 4000 V |
