KWCELNM Series

Catalog

LED OSLON WHITE SMD

Part	Thermal Resistance of Package	Current - Test	Current - Max [Max]	Supplier Device Package	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Viewing Angle	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test	Mounting Type	Color	Voltage - Forward (Vf) (Typ)	Grade	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Qualification

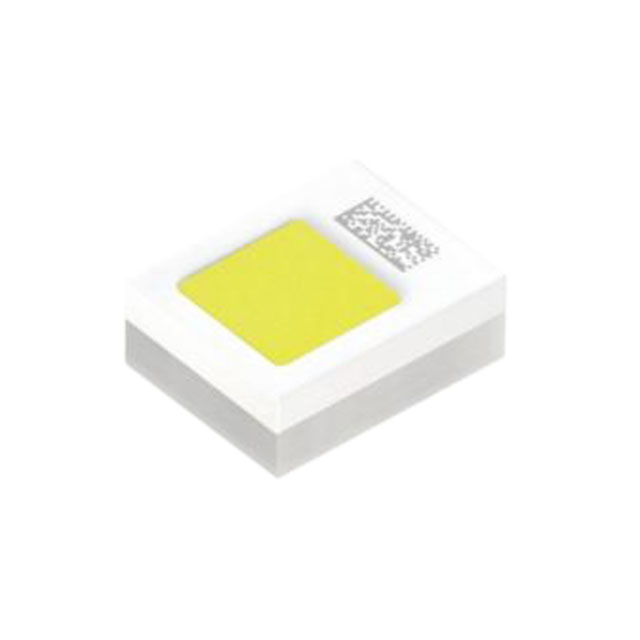

ams-OSRAM USA INC. KW CELNM2.TK-S2S8-4L07M0-2686-S	4.6 °C/W	1 A	1.5 A	SMD	2-SMD No Lead Exposed Pad	0.03 in	0.77 mm	1.5 mm	0.059 in	0.075 "	1.9 mm	140 lm/W	120 °	355 lm 510 lm	433 lm	Surface Mount	White	3.1 V

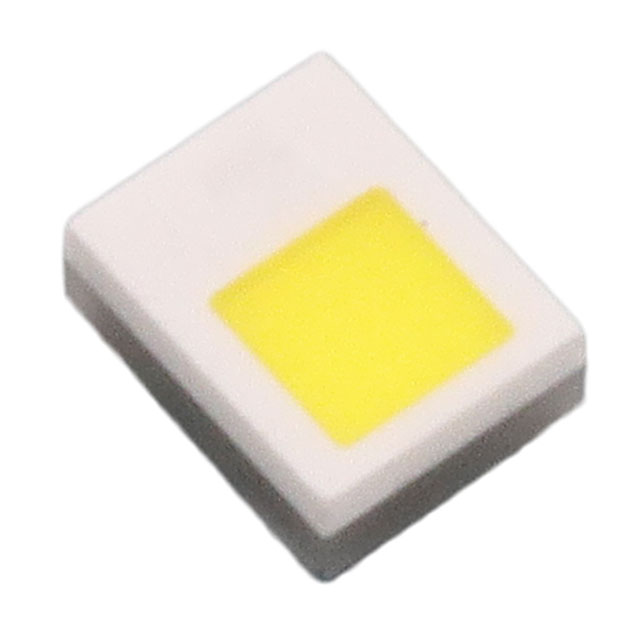

ams-OSRAM USA INC. KW CELNM1.TG-Z5NF6-EBVFFCBB46-15B3-A-S	4.6 °C/W	1 A	1.5 A	SMD	2-SMD No Lead Exposed Pad	0.03 in	0.77 mm	1.5 mm	0.059 in	0.075 "	1.9 mm	125 lm/W	120 °			Surface Mount	White	2.875 V 3 V	Automotive	450 lm	297 lm	AEC-Q102
