391-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K

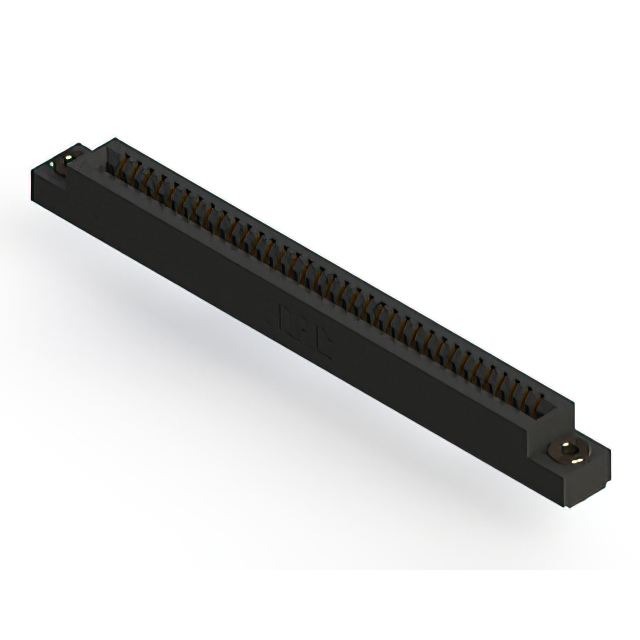

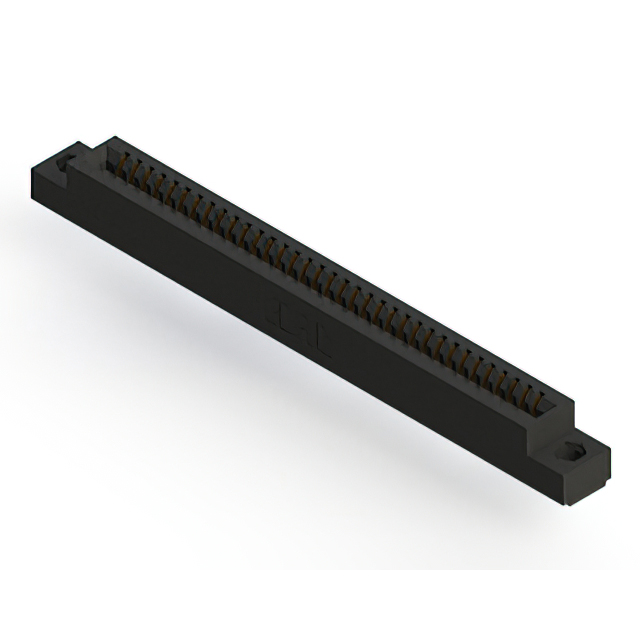

CONN EDGE SINGLE FML 35POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Finish | Gender | Color | Contact Finish Thickness | Contact Finish Thickness | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Card Type | Number of Positions/Bay/Row | Pitch | Pitch | Mounting Type | Number of Positions | Contact Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Female | Black | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Single | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 35 | 0.1 " | 2.54 mm | Through Hole | 35 | Copper Alloy | Semi Bellows |
