HE1WPR Series

Catalog

CONN TERM STRIP 12 POLES 8MM

Part	Operating Temperature (Min)	Operating Temperature (Max)	Terminal Screw Finish	Material Flammability Rating	Terminal Screw Material	Material - Insulation	Mounting Type	Voltage Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Pitch	Number of Wire Entries	Number of Rows	Bottom Termination	Terminal Block Type	Barrier Type	Number of Circuits	Top Termination	Color	Current Rating
Altech Corporation HE1WPR/12	-30 °C	125 °C	Blue Chromate	UL94 V-0	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	300 VAC/DC	12 AWG	24 AWG	0.315 in	24	2	Closed	Eurostyle Terminal Strip	Enclosed	12	Screws	White	20 A
Altech Corporation HE1WPR/11	-30 °C	125 °C	Blue Chromate	UL94 V-0	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	300 VAC/DC	12 AWG	24 AWG	0.315 in	22	2	Closed	Eurostyle Terminal Strip	Enclosed	11	Screws	White	20 A

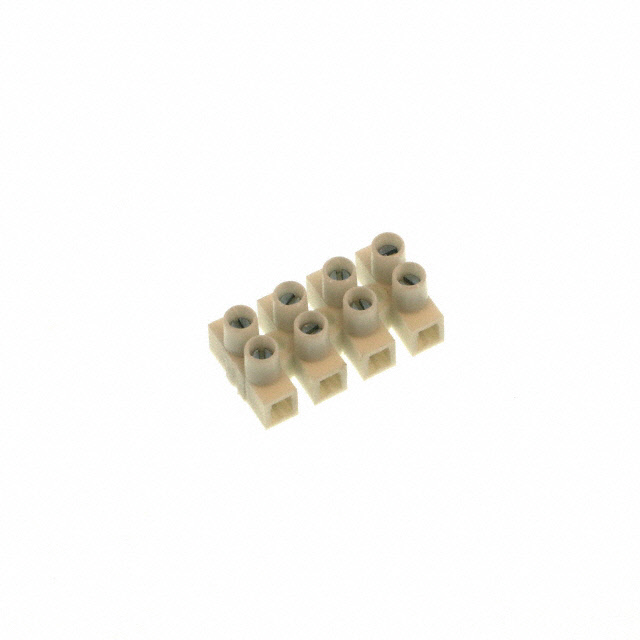

Altech Corporation HE1WPR/04	-30 °C	125 °C	Blue Chromate	UL94 V-0	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	300 VAC/DC	12 AWG	24 AWG	0.315 in	8	2	Closed	Eurostyle Terminal Strip	Enclosed	4	Screws	White	20 A
Altech Corporation HE1WPR/06								300 VAC/DC	12 AWG	24 AWG	0.315 in	12	2	Closed	Eurostyle Terminal Strip	Enclosed	6	Screws	White	20 A
Altech Corporation HE1WPR/02	-30 °C	125 °C	Blue Chromate	UL94 V-0	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	300 VAC/DC	12 AWG	24 AWG	0.315 in	4	2	Closed	Eurostyle Terminal Strip	Enclosed	2	Screws	White	20 A
Altech Corporation HE1WPR/05								300 VAC/DC	12 AWG	24 AWG	0.315 in	10	2	Closed	Eurostyle Terminal Strip	Enclosed	5	Screws	White	20 A

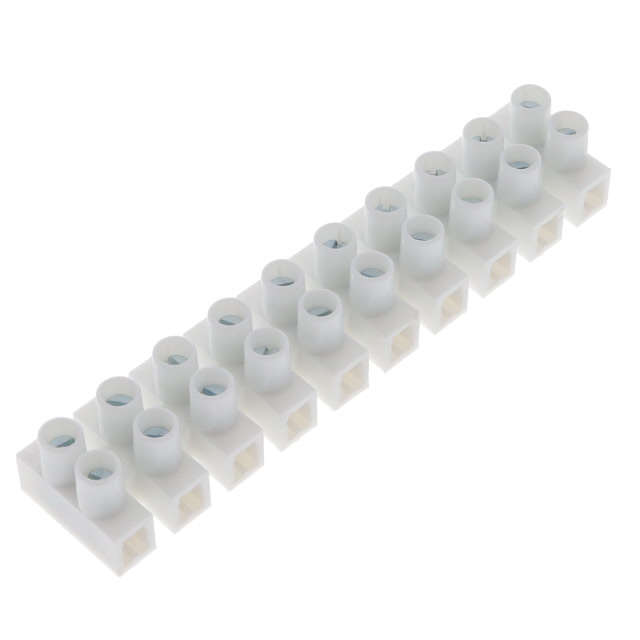

Altech Corporation HE1WPR/10	-30 °C	125 °C	Blue Chromate	UL94 V-0	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	300 VAC/DC	12 AWG	24 AWG	0.315 in	20	2	Closed	Eurostyle Terminal Strip	Enclosed	10	Screws	White	20 A
Altech Corporation HE1WPR/09								300 VAC/DC	12 AWG	24 AWG	0.315 in	18	2	Closed	Eurostyle Terminal Strip	Enclosed	9	Screws	White	20 A
Altech Corporation HE1WPR/03	-30 °C	125 °C	Blue Chromate	UL94 V-0	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	300 VAC/DC	12 AWG	24 AWG	0.315 in	6	2	Closed	Eurostyle Terminal Strip	Enclosed	3	Screws	White	20 A
