ESD39VASAFH Series

33V, 120W, Automotive Transient Voltage Suppressor

Catalog

33V, 120W, Automotive Transient Voltage Suppressor

Part	Qualification	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ) [Max]	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Package / Case	Mounting Type	Grade	Power Line Protection	Capacitance @ Frequency	Power - Peak Pulse	Type	Operating Temperature	Bidirectional Channels [custom]

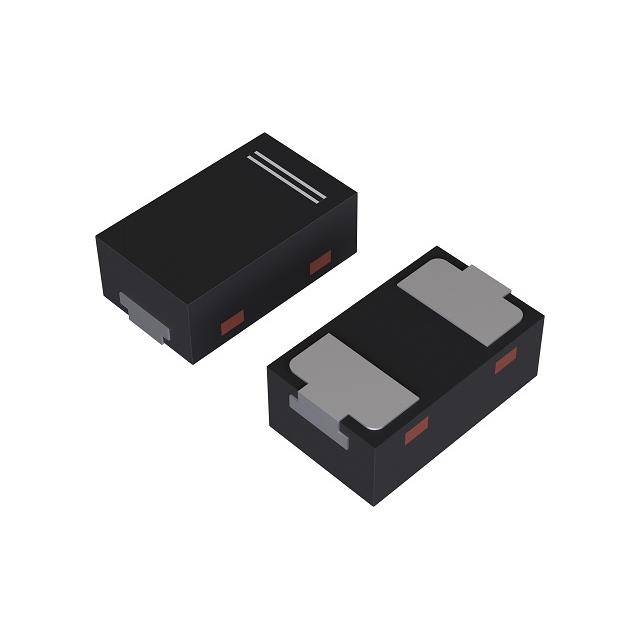

Rohm Semiconductor ESD39VASAFHT2RB	AEC-Q101	59 V	33 V	2 A	37.81 V	SOD-882	Surface Mount Wettable Flank	Automotive		8 pF	120 W	Zener	150 °C	1

Catalog

33V, 120W, Automotive Transient Voltage Suppressor

Description

ESD39VASAFH is a TVS Diode which is ideal for ESD protection in electronic devices. This high surge resistance provide superior protection. This product complies with automotive qualified (AEC-Q101 Qualified).
