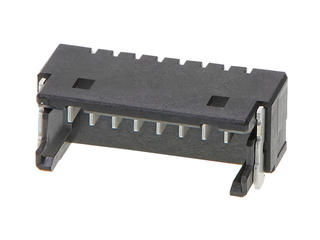

OneBlade Header, 1.00mm Pitch, Single Row, Right-Angle, Surface Mount, Tin (Sn) Plating, Friction Lock, 8 Circuits, Tape and Reel
OneBlade Header, 1.00mm Pitch, Single Row, Right-Angle, Surface Mount, Tin (Sn) Plating, Friction Lock, 8 Circuits, Tape and Reel
OneBlade Header, 1.00mm Pitch, Single Row, Right-Angle, Surface Mount, Tin (Sn) Plating, Friction Lock, 8 Circuits, Tape and Reel
| Part | Connector Type | Termination | Shrouding | Voltage Rating | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Fastening Type | Features | Insulation Color | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Style | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Material Flammability Rating | Number of Positions | Insulation Height [custom] | Insulation Height [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Header | Solder | Shrouded - 3 Wall | 100 VAC | 1 | 1 çm | 39.4 çin | Varies by Wire Gauge | Friction Lock | Solder Retention | Black | Surface Mount Right Angle | 0.039 in | 1 mm | Brass | Rectangular | 1 µm | 39.4 µin | Tin | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | All | -40 °C | 105 ░C | Male Blade | UL94 V-0 | 7 | 0.157 in | 4 mm |
 Molex | Header | Solder | Shrouded - 3 Wall | 100 VAC | 1 | 1 çm | 39.4 çin | Varies by Wire Gauge | Friction Lock | Solder Retention | Black | Surface Mount Right Angle | 0.039 in | 1 mm | Brass | Rectangular | 1 µm | 39.4 µin | Tin | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | All | -40 °C | 105 ░C | Male Blade | UL94 V-0 | 2 | 0.157 in | 4 mm |
 Molex | Header | Solder | Shrouded - 3 Wall | 100 VAC | 1 | 1 çm | 39.4 çin | Varies by Wire Gauge | Friction Lock | Solder Retention | Black | Surface Mount Right Angle | 0.039 in | 1 mm | Brass | Rectangular | 1 µm | 39.4 µin | Tin | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | All | -40 °C | 105 ░C | Male Blade | UL94 V-0 | 8 | 0.157 in | 4 mm |
Molex | Header | Solder | Shrouded - 3 Wall | 100 VAC | 1 | 1 çm | 39.4 çin | Varies by Wire Gauge | Friction Lock | Solder Retention | Black | Surface Mount Right Angle | 0.039 in | 1 mm | Brass | Rectangular | 1 µm | 39.4 µin | Tin | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | All | -40 °C | 105 ░C | Male Blade | UL94 V-0 | 0.157 in | 4 mm | |
 Molex | Header | Solder | Shrouded - 3 Wall | 100 VAC | 1 | 1 çm | 39.4 çin | Varies by Wire Gauge | Friction Lock | Solder Retention | Black | Surface Mount Right Angle | 0.039 in | 1 mm | Brass | Rectangular | 1 µm | 39.4 µin | Tin | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | All | -40 °C | 105 ░C | Male Blade | UL94 V-0 | 0.157 in | 4 mm | |
Molex | Header | Solder | Shrouded - 3 Wall | 100 VAC | 1 | 1 çm | 39.4 çin | Varies by Wire Gauge | Friction Lock | Solder Retention | Black | Surface Mount Right Angle | 0.039 in | 1 mm | Brass | Rectangular | 1 µm | 39.4 µin | Tin | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | All | -40 °C | 105 ░C | Male Blade | UL94 V-0 | 6 | 0.157 in | 4 mm |
