MPC8315 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

32-BIT, 400MHZ, MICROPROCESSOR, PBGA620

Part	Speed	RAM Controllers	USB	Supplier Device Package	Package / Case	Ethernet	Ethernet	Voltage - I/O	SATA	Mounting Type	Core Processor	Number of Cores/Bus Width	Operating Temperature [Max]	Operating Temperature [Min]	Additional Interfaces	Co-Processors/DSP	Security Features

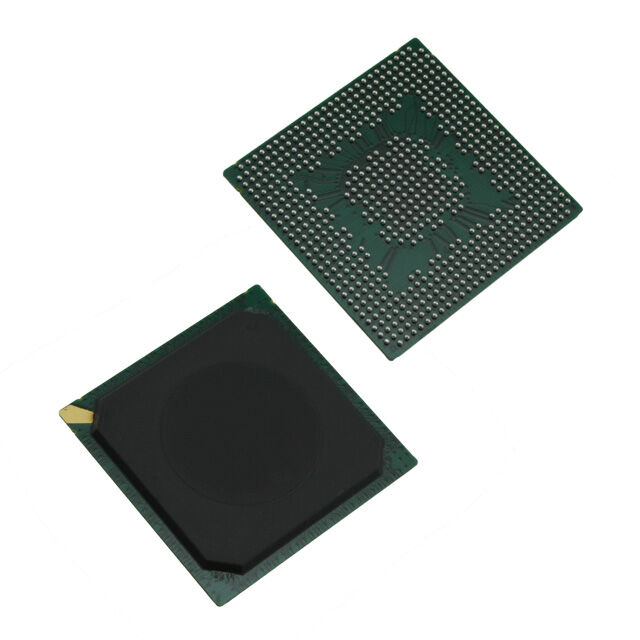

Freescale Semiconductor - NXP MPC8315VRAGDA	400 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	0 °C	DUART I2C PCI SPI TDM
Freescale Semiconductor - NXP MPC8315EVRAGDA	400 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	0 °C	DUART I2C PCI SPI TDM	SEC 3.3 Security	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8315CVRAGDA	400 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	-40 °C	DUART I2C PCI SPI TDM
Freescale Semiconductor - NXP MPC8315EVRADDA	266 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	0 °C	DUART I2C PCI SPI TDM	SEC 3.3 Security	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8315VRADDA	266 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	0 °C	DUART I2C PCI SPI TDM
Freescale Semiconductor - NXP MPC8315VRAFDA	333 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	0 °C	DUART I2C PCI SPI TDM
Freescale Semiconductor - NXP MPC8315ECVRAGDA	400 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	-40 °C	DUART I2C PCI SPI TDM	SEC 3.3 Security	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8315ECVRAGDA	400 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-PBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	-40 °C	DUART I2C PCI SPI TDM	SEC 3.3 Security	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8315EVRADDA	266 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	0 °C	DUART I2C PCI SPI TDM	SEC 3.3 Security	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8315CVRAFDA	333 MHz	DDR DDR2	USB 2.0 + PHY (1)	620-HBGA (29x29)	620-BBGA Exposed Pad	10 Mbps 100 Mbps 1000 Mbps	2	1.8 V 2.5 V 3.3 V	SATA 3Gbps (2)	Surface Mount	PowerPC e300c3	1 Core 32 Bit	105 °C	-40 °C	DUART I2C PCI SPI TDM
