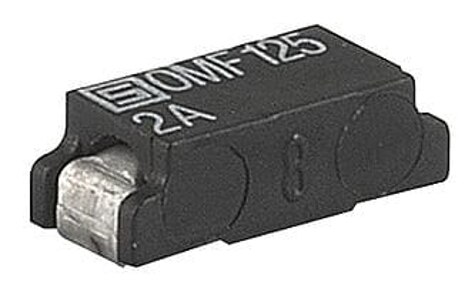

OMF 125 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
"OMF 125, 4 A, 125 VDC, 125 VAC, , QUICK-ACTING F, BLISTER TAPE 33 CM REEL 750 PCS., FUSE , SMT, 7.4 X 3.1 MM\/
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Melting I²t | Voltage Rating - AC | Package / Case | Current Rating (Amps) | Fuse Type | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Response Time | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | -55 C | 125 °C | Surface Mount | 2.1 | 125 V | 2-SMD J-Lead | 4 A | Board Mount (Cartridge Style Excluded) | 125 VDC | 100 A | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm |
 SCHURTER Inc. | -55 C | 125 °C | Surface Mount | 1.6 | 125 V | 2-SMD J-Lead | 3.5 A | Board Mount (Cartridge Style Excluded) | 125 VDC | 100 A | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm |
 SCHURTER Inc. | -55 C | 125 °C | Surface Mount | 2.9 | 125 V | 2-SMD J-Lead | 5 A | Board Mount (Cartridge Style Excluded) | 125 VDC | 100 A | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm |
 SCHURTER Inc. | -55 C | 125 °C | Surface Mount | 0.44 | 125 V | 2-SMD J-Lead | 2 A | Board Mount (Cartridge Style Excluded) | 125 VDC | 100 A | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm |
SCHURTER Inc. | -55 C | 125 °C | Surface Mount | 2.1 | 125 V | 2-SMD J-Lead | 4 A | Board Mount (Cartridge Style Excluded) | 125 VDC | 100 A | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm |
