NHD-0240 Series

Catalog

LCD MOD 80DIG 40X2 TRANS YLW/GRN

Part	Dot Size [custom]	Dot Size [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Background Color	Character Format [x]	Character Format [y]	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Number of Characters	Character Size [y]	Character Size [z]	Display Type	Display Mode	Controller Type	Viewing Area [x]	Viewing Area [y]	Text Color	Display Format [y]	Display Format [x]	Voltage - Supply	Backlight

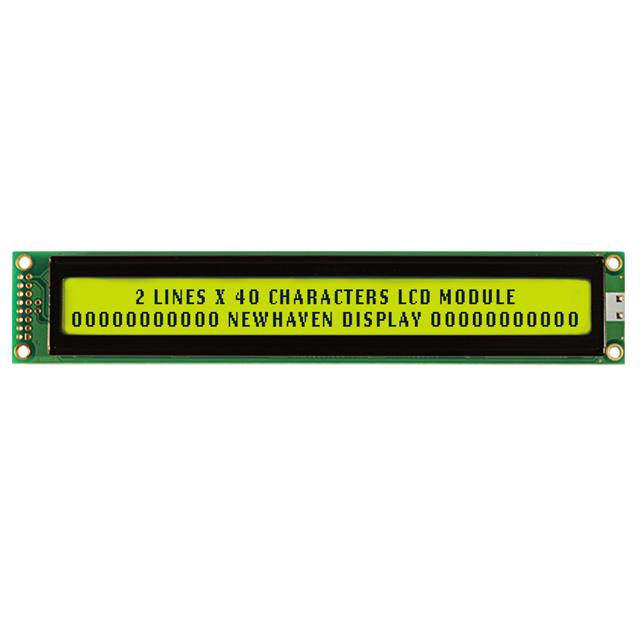

Newhaven Display Intl NHD-0240AZ-FL-GBW	0.65 mm	0.6 mm	5.5 V	4.7 V	Green	5 Dots	8 Dots	182 mm	33.5 mm	13.5 mm	Parallel	-20 ░C	70 °C	80	3.2 mm	5.55 mm	STN - Super-Twisted Nematic	Transflective	SPLC780D ST7066U	152.5 mm	16.5 mm	Blue	2	40

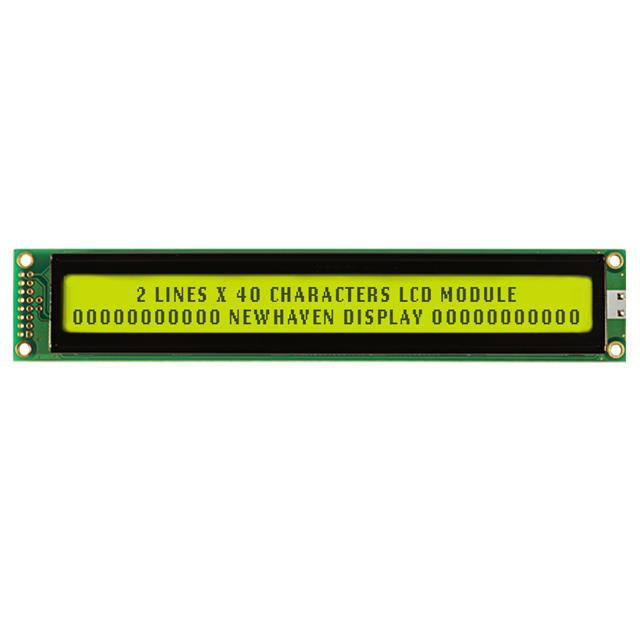

Newhaven Display Intl NHD-0240AZ-FL-YBW	0.65 mm	0.6 mm	5.5 V	4.7 V	Green	5 Dots	8 Dots	182 mm	33.5 mm	13.5 mm	Parallel	-20 ░C	70 °C	80	3.2 mm	5.55 mm	STN - Super-Twisted Nematic	Transflective	SPLC780D ST7066U	152.5 mm	16.5 mm	Blue	2	40

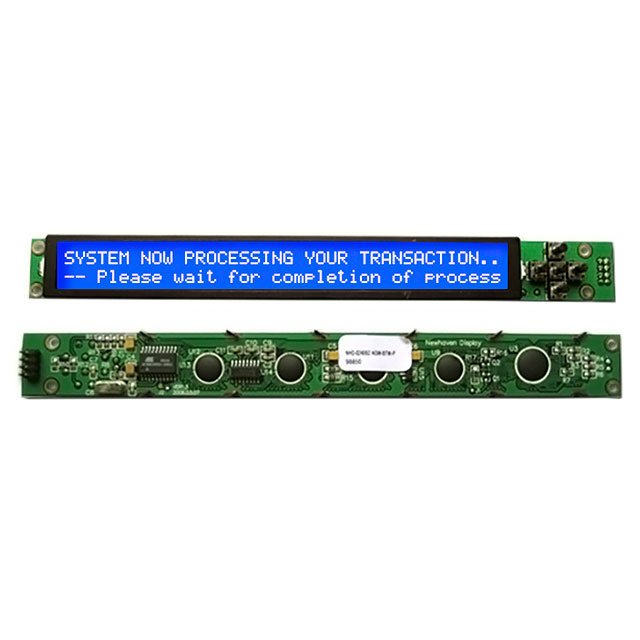

Newhaven Display Intl NHD-0240BZ-NSW-BTW-P	0.65 mm	0.6 mm			Blue	5 Dots	8 Dots	163 mm	22 mm	13.4 mm	RS-232	-20 ░C	70 °C	80	3.2 mm	5.55 mm	STN - Super-Twisted Nematic	Transmissive		153.5 mm	16 mm	White	2	40	12 VDC	LED - White
