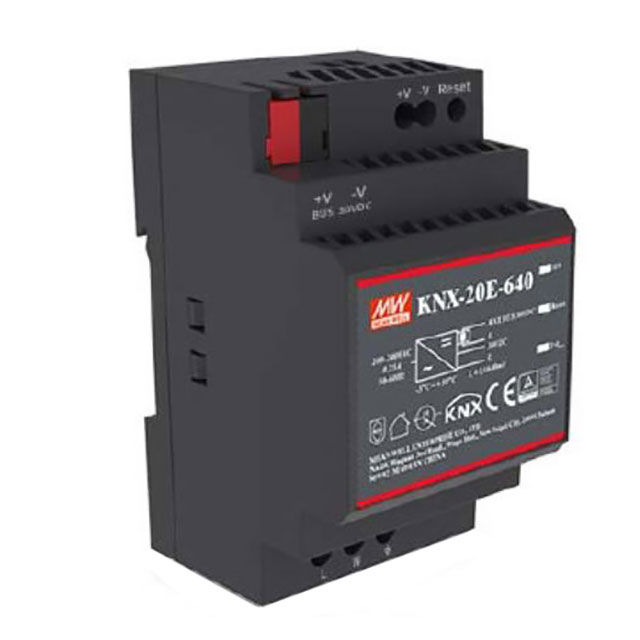

KNX-20E Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 30V 19W
| Part | Efficiency | Power (Watts) | Current - Output (Max) [Max] | Applications | Number of Outputs | Voltage - Isolation | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Features | DC Voltage - Input (Max) [Max] | Voltage - Output 1 | DC Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 86 % | 19 W | 640 mA | ITE (Commercial) | 1 | 3000 V | AC or DC | -30 °C | 70 °C | 180 VAC | 264 VAC | IP20 | 370 V | 30 V | 230 V | 3.54 " | 52.5 mm | 2.07 in | 90 mm | 58.5 mm | 2.3 in | CE EAC TUV |
