VBM211 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

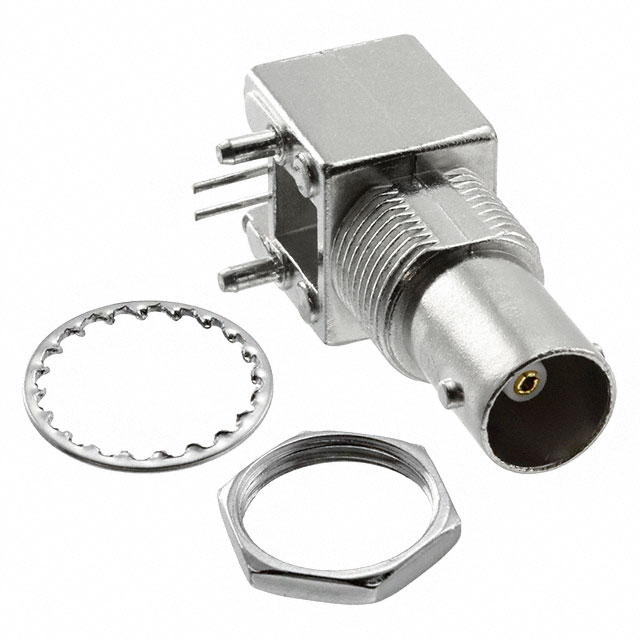

CONN BNC JACK R/A 75 OHM PCB
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Includes | Voltage Rating | Body Finish | Insertion Loss | Mating Cycles | Number of Ports | Fastening Type | Mounting Type | Housing Color | Connector Type | Shield Termination | Contact Termination | Connector Style | Frequency - Max [Max] | Mounting Feature | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Zinc Alloy | -55 C | 85 °C | Polyoxymethylene (POM) | Gold | 1 Connector 1 Lockwasher 1 Nut | 500 V | Nickel | 0.2 dB | 500 | 1 | Bayonet Lock | Panel Mount Right Angle Through Hole | Silver | Female Socket Jack | Solder | Solder | BNC | 1 GHz | Bulkhead - Front Side Nut | 75 Ohms | Phosphor Bronze |
