MP6004 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
EVAL BOARD FOR MP6004
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Utilized IC / Part | Current - Output | Contents | Voltage - Output | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Output Type | Synchronous Rectifier | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Output (Min/Fixed) [Min] | Mounting Type | Voltage - Output (Max) [Max] | Voltage - Input (Max) [Max] | Frequency - Switching | Output Configuration | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | AC/DC Primary Side | 36 V | 72 V | Flyback | MP6004 | 1 A | Board(s) | 12 V | ||||||||||||||

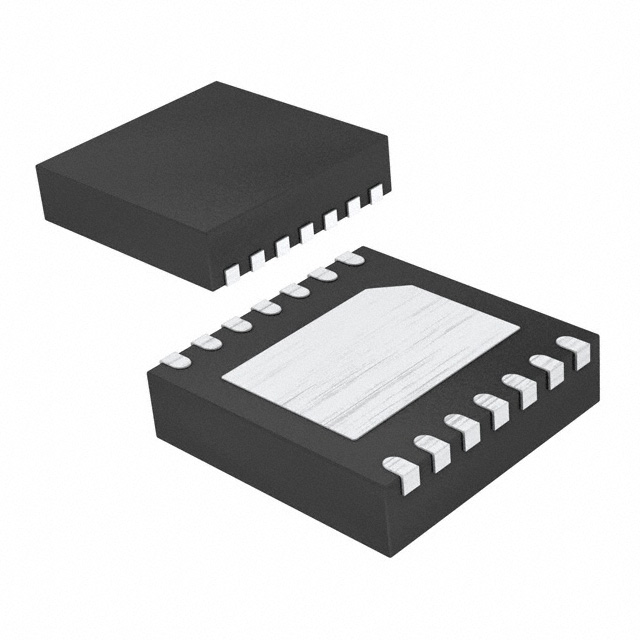

 Monolithic Power Systems Inc. | 3 A | -40 C | 125 °C | 14-VFDFN Exposed Pad | Adjustable | 14 V | 1 | -1 V | Surface Mount | 150 V | 80 V | 200 kHz | Positive | Step-Down |
