171446 Series

SpeedStack Vertical Plug, 0.80mm Pitch, 3.90mm Height, 60 Circuits, UL94V-0, Black

Manufacturer: Molex

Catalog

SpeedStack Vertical Plug, 0.80mm Pitch, 3.90mm Height, 60 Circuits, UL94V-0, Black

Part	Number of Positions	Pitch	Pitch	Features	Mounting Type	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
Molex 1714461114	60	0.8 mm	0.031 in	Board Guide	Surface Mount	2	0.217 in	5.5 mm	Gold	5 mm 6 mm 7 mm 8 mm	30 Áin	0.76 Ám

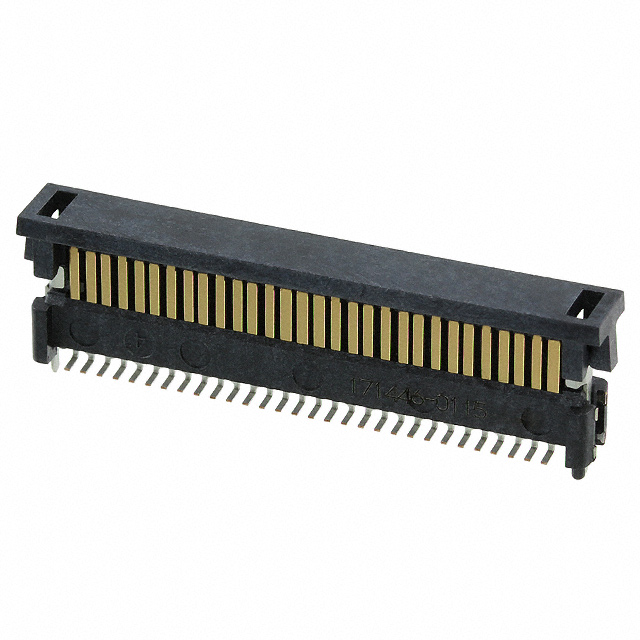

Molex 1714460115	60	0.8 mm	0.031 in	Board Guide	Surface Mount	2	0.256 in	6.5 mm	Gold	6 mm 7 mm 8 mm 9 mm	30 Áin	0.76 Ám
Molex 1714461112	60	0.8 mm	0.031 in	Board Guide	Surface Mount	2	0.154 in	3.9 mm	Gold		30 Áin	0.76 Ám
Molex 1714461102	22	0.8 mm	0.031 in	Board Guide	Surface Mount	2	0.177 in	4.5 mm	Gold		30 Áin	0.76 Ám
Molex 1714461109	60	0.8 mm	0.031 in	Board Guide	Surface Mount	2			Gold	10 mm 11 mm 12 mm 13 mm	30 Áin	0.76 Ám
Molex 1714461115	60	0.8 mm	0.031 in	Board Guide	Surface Mount	2	0.256 in	6.5 mm	Gold	6 mm 7 mm 8 mm 9 mm	30 Áin	0.76 Ám

SpeedStack Vertical Plug, 0.80mm Pitch, 3.90mm Height, 60 Circuits, UL94V-0, Black
