DH281 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB DPST-NO/NC 2A 125V
| Part | Circuit | Electrical Life | Actuator Marking | Switch Function | Mounting Type | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Voltage Rating - DC | Voltage Rating - AC | Current Rating (Amps) | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Type | Ingress Protection | Color - Actuator/Cap | Actuator Type | Illumination Voltage (Nominal) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | DPST-NO/NC SPST-NC SPST-NO | 50000 Cycles | No Marking | Off-On On-Off | Panel Mount Front | 28 mm | Green LED | 24 V | 125 V | 2 A | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Black | Button Flush Round | ||
CIT Relay and Switch | SPST-NC SPST-NO | 50000 Cycles | No Marking | Off-Mom On-Mom | Panel Mount Front | 28 mm | Blue LED | 24 V | 125 V | 2 A | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Silver | Button Flush Round | 24 V | Stainless Steel |

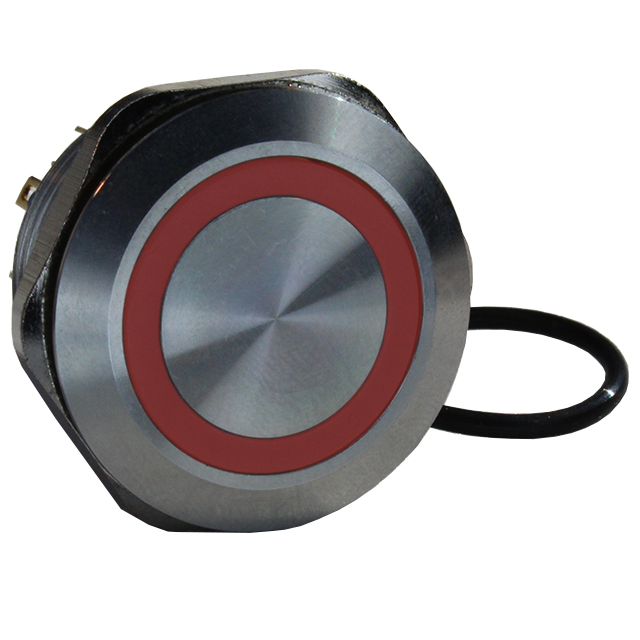

 CIT Relay and Switch | DPST-NO/NC SPST-NC SPST-NO | 50000 Cycles | No Marking | Off-Mom On-Mom | Panel Mount Front | 28 mm | LED Red | 24 V | 125 V | 2 A | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Silver | Button Flush Round | 12 VDC | Stainless Steel |
CIT Relay and Switch | DPST-NO/NC SPST-NC SPST-NO | 50000 Cycles | No Marking | Off-Mom On-Mom | Panel Mount Front | 28 mm | Blue LED | 24 V | 125 V | 2 A | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Black | Button Flush Round | ||
CIT Relay and Switch | DPST-NO/NC SPST-NC SPST-NO | 50000 Cycles | No Marking | Off-On On-Off | Panel Mount Front | 28 mm | Blue LED | 24 V | 125 V | 2 A | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Silver | Button Flush Round | Stainless Steel | |
CIT Relay and Switch | SPST-NC SPST-NO | 50000 Cycles | No Marking | Off-On On-Off | Panel Mount Front | 28 mm | Blue LED | 24 V | 125 V | 2 A | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Black | Button Flush Round |
