11133001 Series
Manufacturer: HARTING
Beta
⌘K
HAN-YELLOCK 30M HOOD SIDE ENTRY M25 - OUTDOOR VERSION
| Part | Housing Material | Thread Size | Style | Ingress Protection | Housing Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

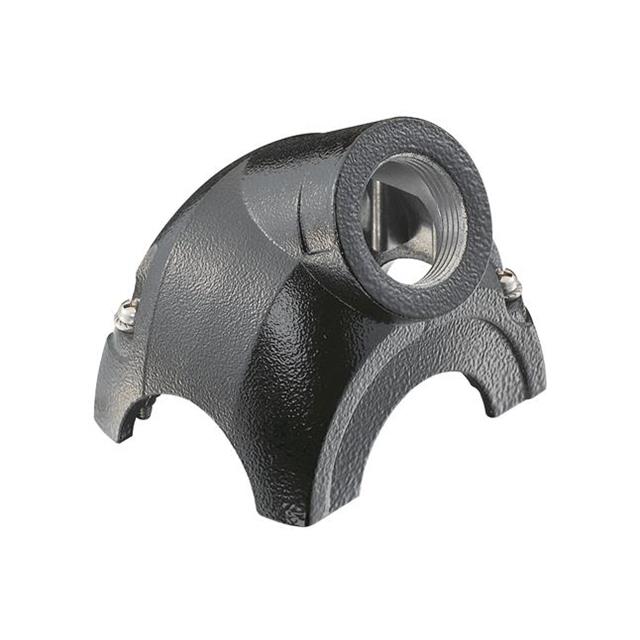

 HARTING | Aluminum Die Cast | M25 | Side Entry | IP65 IP67 | Gray | 2.205 in | 72.7 mm | 63.4 mm | 2.862 " | 2.496 in | 56 mm | Hood - Shell | 125 °C | -40 C | Powder Coated | Push Button Snap Lock on Hood Carrier |

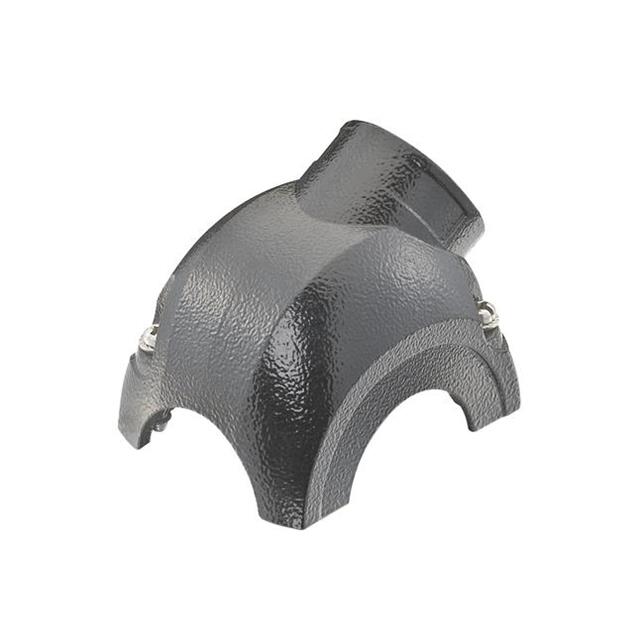

 HARTING | Aluminum Die Cast | M25 | Side Entry | IP65 IP67 | Gray | 2.205 in | 72.7 mm | 67.5 mm | 2.862 " | 2.657 " | 56 mm | Hood - Shell | 125 °C | -40 C | Powder Coated | Push Button Snap Lock on Hood Carrier |

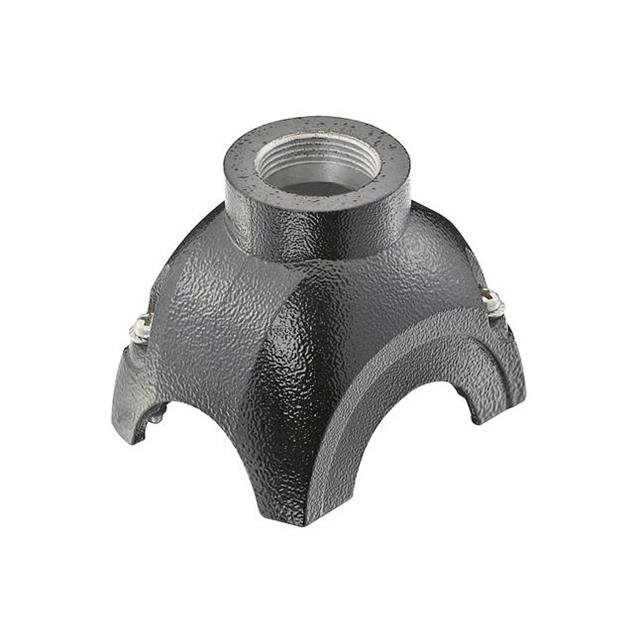

 HARTING | Aluminum Die Cast | M25 | Top Entry | IP65 IP67 | Gray | 2.205 in | 72.7 mm | 60.2 mm | 2.862 " | 2.37 " | 56 mm | Hood - Shell | 125 °C | -40 C | Powder Coated | Push Button Snap Lock on Hood Carrier |
 HARTING |
