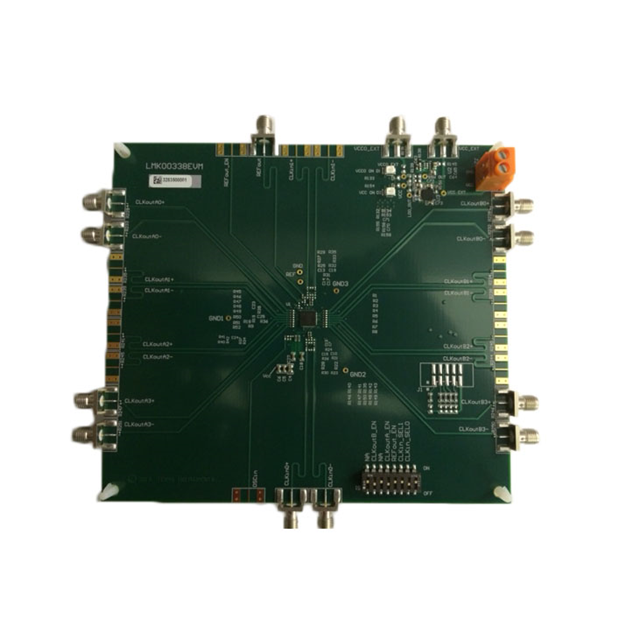

LMK00338 Series
8-output PCIe® Gen1/Gen2/Gen3/Gen4/Gen5 clock buffer and level translator
Manufacturer: Texas Instruments
Catalog
8-output PCIe® Gen1/Gen2/Gen3/Gen4/Gen5 clock buffer and level translator
Key Features
• 3:1 Input MultiplexerTwo Universal Inputs Operate up to 400 MHz and Accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or Single-Ended ClocksOne Crystal Input Accepts a 10-MHz to 40-MHz Crystal or Single-Ended ClockTwo Banks With 4 Differential Outputs EachHCSL, or Hi-Z (Selectable per Bank)Additive RMS Phase Jitter for PCIe Gen5 at 100 MHz:15 fs RMS (Typical)–72 dBc at 156.25 MHzLVCMOS Output With Synchronous Enable InputPin-Controlled ConfigurationVCCCore Supply: 3.3 V ± 5%3 Independent VCCOOutput Supplies: 3.3 V/2.5 V ± 5%Industrial Temperature Range: –40°C to +85°C40-lead WQFN (6 mm × 6 mm)3:1 Input MultiplexerTwo Universal Inputs Operate up to 400 MHz and Accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or Single-Ended ClocksOne Crystal Input Accepts a 10-MHz to 40-MHz Crystal or Single-Ended ClockTwo Banks With 4 Differential Outputs EachHCSL, or Hi-Z (Selectable per Bank)Additive RMS Phase Jitter for PCIe Gen5 at 100 MHz:15 fs RMS (Typical)–72 dBc at 156.25 MHzLVCMOS Output With Synchronous Enable InputPin-Controlled ConfigurationVCCCore Supply: 3.3 V ± 5%3 Independent VCCOOutput Supplies: 3.3 V/2.5 V ± 5%Industrial Temperature Range: –40°C to +85°C40-lead WQFN (6 mm × 6 mm)
Description
AI
The LMK00338 device is an 8-output PCIe Gen1/Gen2/Gen3/Gen4/Gen5 fanout buffer intended for high-frequency, low-jitter clock, data distribution, and level translation. The input clock can be selected from two universal inputs or one crystal input. The selected input clock is distributed to two banks of 4 HCSL outputs and one LVCMOS output. The LVCMOS output has a synchronous enable input for runt-pulse-free operation when enabled or disabled. The LMK00338 operates from a 3.3-V core supply and 3 independent 3.3-V or 2.5-V output supplies.
The LMK00338 provides high performance, versatility, and power efficiency, making it ideal for replacing fixed-output buffer devices while increasing timing margin in the system.
The LMK00338 device is an 8-output PCIe Gen1/Gen2/Gen3/Gen4/Gen5 fanout buffer intended for high-frequency, low-jitter clock, data distribution, and level translation. The input clock can be selected from two universal inputs or one crystal input. The selected input clock is distributed to two banks of 4 HCSL outputs and one LVCMOS output. The LVCMOS output has a synchronous enable input for runt-pulse-free operation when enabled or disabled. The LMK00338 operates from a 3.3-V core supply and 3 independent 3.3-V or 2.5-V output supplies.
The LMK00338 provides high performance, versatility, and power efficiency, making it ideal for replacing fixed-output buffer devices while increasing timing margin in the system.
