039773 Series
Manufacturer: Molex
Beta
⌘K
CONN TERMINAL BLOCK 3 POS 2.54MM SOLDER ST THRU-HOLE 10A/CONTACT EUROSTYLE FIXED MOUNT
| Part | Torque - Screw | Torque - Screw | Pitch [x] | Pitch [x] | Current | Contact Material - Plating | Mating Orientation | Clamp Material - Plating | Screw Material - Plating | Mounting Type | Number of Levels | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Color | Wire Termination | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.19 Nm | 1.68 Lb-In | 2.54 mm | 0.1 in | 10 A | Copper Alloy - Tin Plated | Horizontal with Board | Copper Alloy - Nickel Plated | Copper Alloy - Nickel Plated | Through Hole | 1 | 150 V | 30 AWG | 16 AWG | Green | Screw - Rising Cage Clamp | 3 | -40 °C | 110 °C | M1.6 |
 Molex | 0.19 Nm | 1.68 Lb-In | 2.54 mm | 0.1 in | 10 A | Copper Alloy - Tin Plated | Horizontal with Board | Copper Alloy - Nickel Plated | Copper Alloy - Nickel Plated | Through Hole | 1 | 150 V | 30 AWG | 16 AWG | Green | Screw - Rising Cage Clamp | 4 | -40 °C | 110 °C | M1.6 |

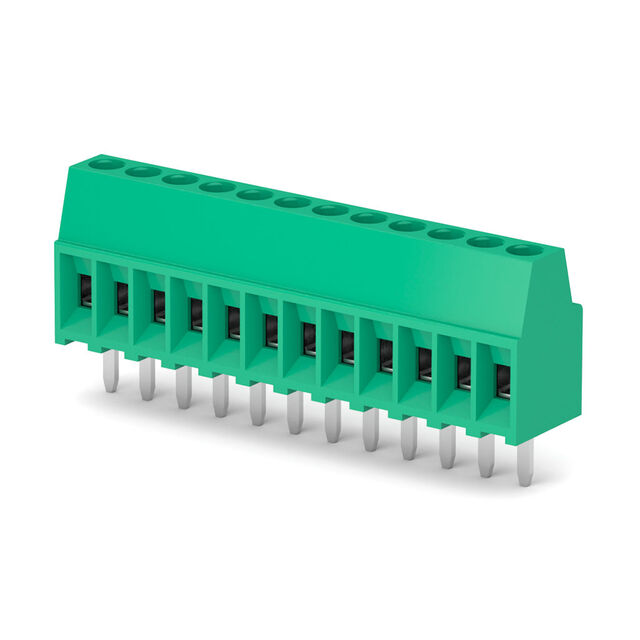

 Molex | 0.2 Nm | 1.7 Lb-In | 2.54 mm | 0.1 in | 10 A | Copper Alloy - Tin Plated | Horizontal with Board | Copper Alloy - Nickel Plated | Copper Alloy - Nickel Plated | Through Hole | 1 | 150 V | 30 AWG | 16 AWG | Green | Screw - Rising Cage Clamp | 12 | -40 °C | 110 °C | M1.6 |

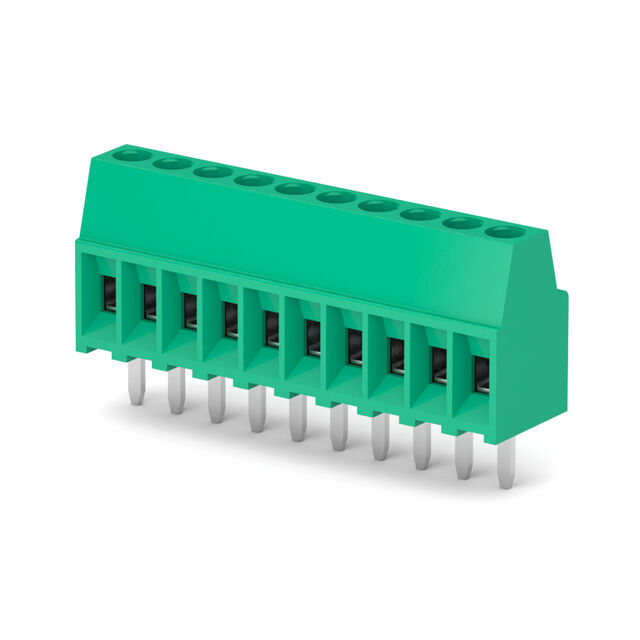

 Molex | 0.2 Nm | 1.7 Lb-In | 2.54 mm | 0.1 in | 10 A | Copper Alloy - Tin Plated | Horizontal with Board | Copper Alloy - Nickel Plated | Copper Alloy - Nickel Plated | Through Hole | 1 | 150 V | 30 AWG | 16 AWG | Green | Screw - Rising Cage Clamp | 10 | -40 °C | 110 °C | M1.6 |

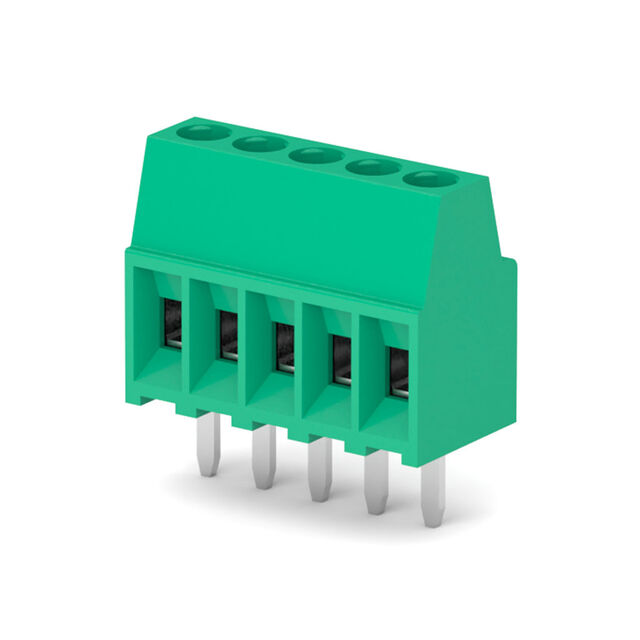

 Molex | 0.2 Nm | 1.7 Lb-In | 2.54 mm | 0.1 in | 10 A | Copper Alloy - Tin Plated | Horizontal with Board | Copper Alloy - Nickel Plated | Copper Alloy - Nickel Plated | Through Hole | 1 | 150 V | 30 AWG | 16 AWG | Green | Screw - Rising Cage Clamp | 5 | -40 °C | 110 °C | M1.6 |
