F3311 Series

Catalog

CONN FFC FPC 8POS 0.5MM R/A

Part	Housing Color	Actuator Color	Housing Material	Locking Feature	FFC, FCB Thickness	Contact Material	Contact Finish	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Voltage Rating	Connector/Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Features	Actuator Material	Mounting Type	Flat Flex Type	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Cable End Type
Amphenol ICC (FCI) F3311A7H121008E200	Natural	Black	Liquid Crystal Polymer (LCP)	Backlock Flip Lock	0.3 mm	Phosphor Bronze	Gold	20	3 Áin	0.076 Ám	0.5 A	50 V	Contacts Top and Bottom	0.5 mm	0.02 in	8	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA9T) Nylon 9T	Surface Mount Right Angle	FFC FPC	Solder	UL94 V-0	85 °C	-55 °C	1.02 mm	0.04 in	Straight

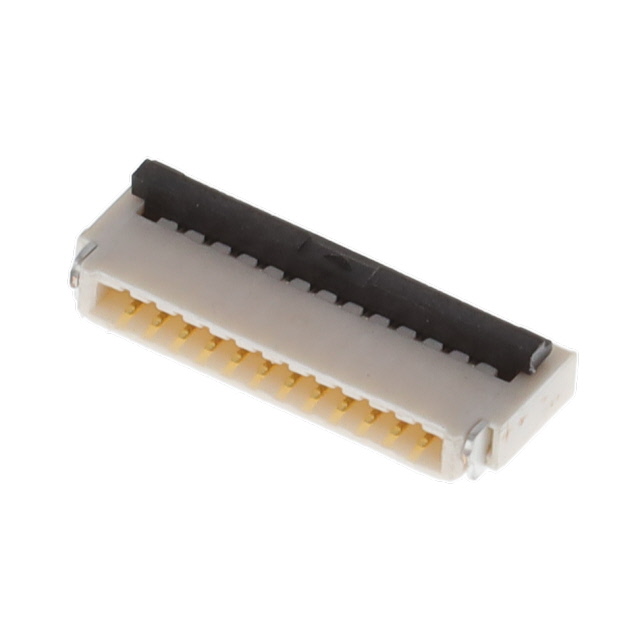

Amphenol ICC (FCI) F3311A7H121012E200	Natural	Black	Liquid Crystal Polymer (LCP)	Backlock Flip Lock	0.3 mm	Phosphor Bronze	Gold	20	3 Áin	0.076 Ám	0.5 A	50 V	Contacts Top and Bottom	0.5 mm	0.02 in	12	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA9T) Nylon 9T	Surface Mount Right Angle	FFC FPC	Solder	UL94 V-0	85 °C	-55 °C	1.02 mm	0.04 in	Straight
