CD1206 Series
Manufacturer: Bourns Inc.
Beta
⌘K

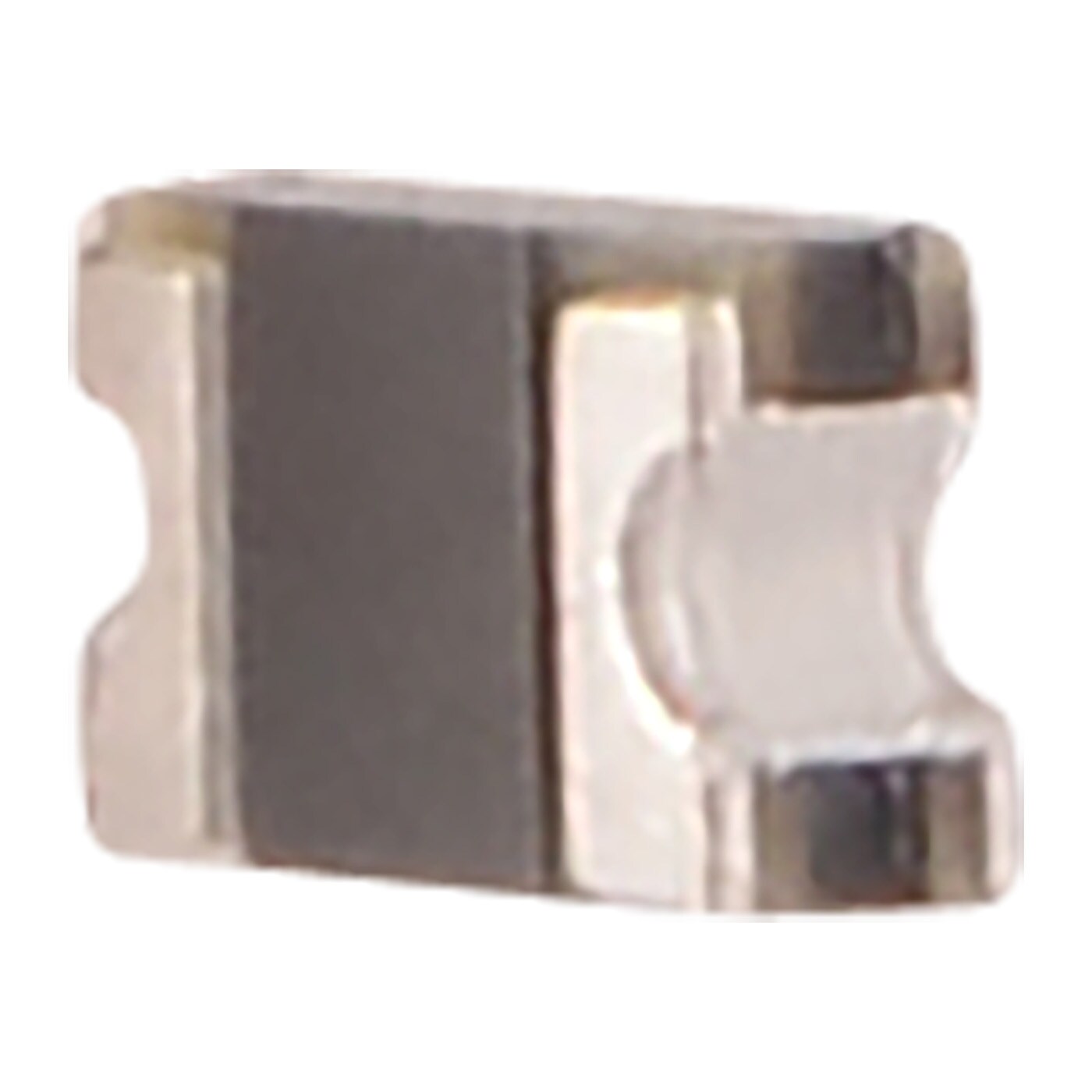

DIODE SCHOTTKY 20V 2A 2-PIN CASE 1206(3216METRIC) T/R
| Part | Voltage - DC Reverse (Vr) (Max) [Max] | Speed | Voltage - Forward (Vf) (Max) @ If | Package / Case | Technology | Current - Average Rectified (Io) | Current - Reverse Leakage @ Vr | Mounting Type | Supplier Device Package | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Capacitance @ Vr, F | Speed | Reverse Recovery Time (trr) | Voltage - Forward (Vf) (Max) @ If [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 20 V | 200 mA 500 ns | 500 mV | Chip Concave Terminals | Schottky | 2 A | 500 µA | Surface Mount | 1206 | -55 °C | 125 °C | ||||
 Bourns Inc. | 100 V | 200 mA | 1206 (3216 Metric) | Standard | 150 mA | 2.5 µA | Surface Mount | 1206 | -55 °C | 125 °C | 3 pF | Any Speed | 4 ns | 1 V |
