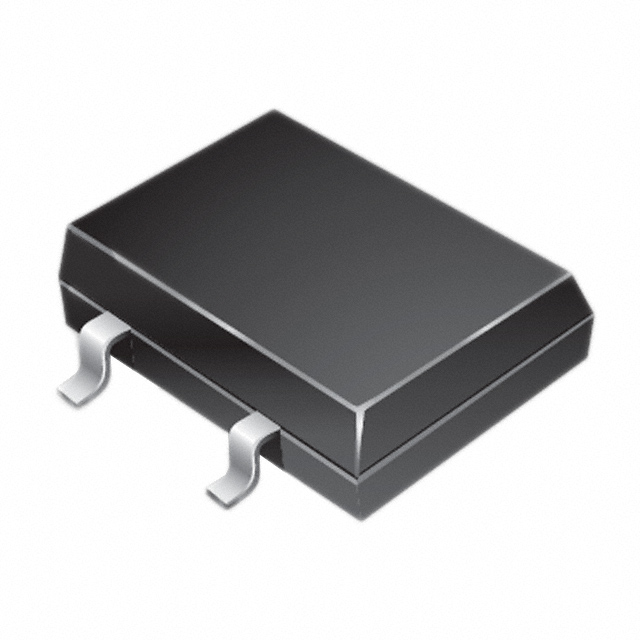

CDNBS04 Series

Catalog

BRIDGE RECT 1P 600V 800MA NBS04

Part	Supplier Device Package	Current - Average Rectified (Io)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Diode Type	Voltage - Peak Reverse (Max)
Bourns Inc. CDNBS04-B08600	NBS04	800 mA	4-SMD Gull Wing	150 °C	-55 °C	1.15 V	Standard	600 V	Surface Mount	5 µA	Single Phase
Bourns Inc. CDNBS04-B08400	NBS04	800 mA	4-SMD Gull Wing	150 °C	-55 °C	1.15 V	Standard	400 V	Surface Mount	5 µA	Single Phase
Bourns Inc. CDNBS04-B08800	NBS04	800 mA	4-SMD Gull Wing	150 °C	-55 °C	1.15 V	Standard		Surface Mount	5 µA	Single Phase	800 V
