LCB10 Series
Manufacturer: Panduit Corp
Beta
⌘K
CONN TERM RECT TONG 10 AWG #1/4
| Part | Contact Finish | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Material | Diameter - Ring ID | Diameter - Ring ID | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Terminal Style | Wire Gauge | Mounting Type | Insulation | Width - Outer Edges | Width - Outer Edges | Tab Thickness | Tab Thickness | Terminal Type | Termination | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

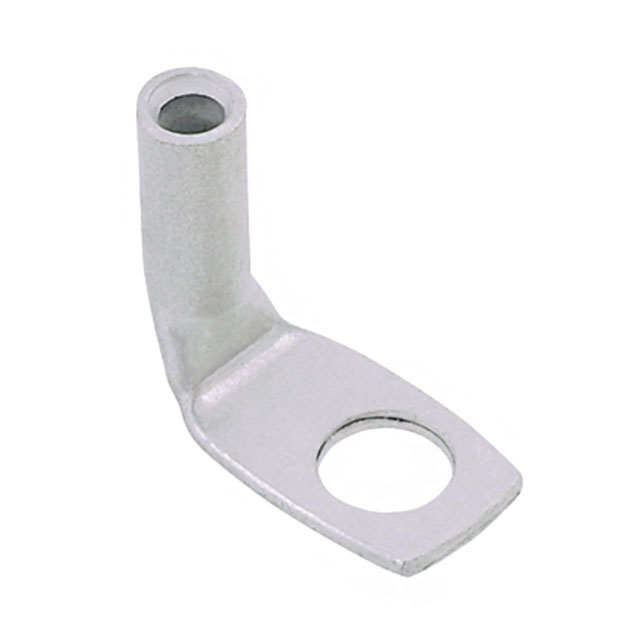

 Panduit Corp | Electro-Tin | 3.3 mm | 0.13 " | Copper | 0.27 in | 6.86 mm | 5.59 mm | 0.22 in | Single Stud Hole | 10 AWG | Free Hanging (In-Line) Right Angle | Non-Insulated | 10.67 mm | 0.42 in | 1.27 mm | 0.05 " | Rectangular Tongue | Barrel Crimp | 0.25 Stud | ||

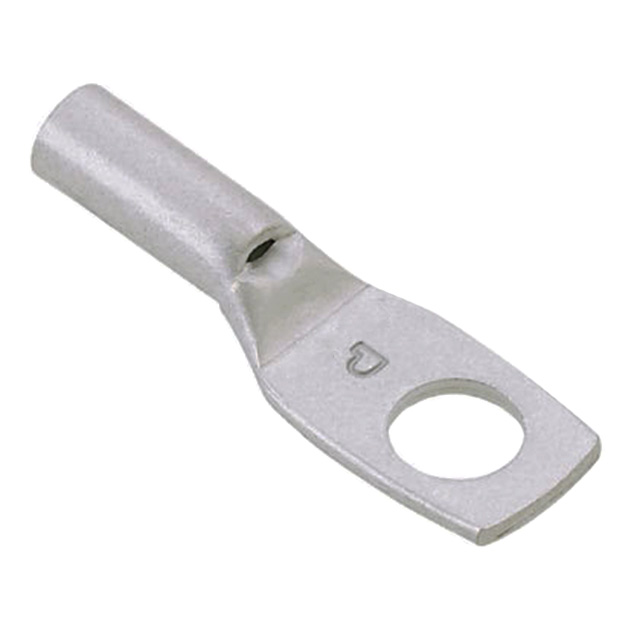

 Panduit Corp | Electro-Tin | 3.3 mm | 0.13 " | Copper | 0.27 in | 6.86 mm | 5.59 mm | 0.22 in | Single Stud Hole | 10 AWG | Free Hanging (In-Line) | Non-Insulated | 10.67 mm | 0.42 in | 1.27 mm | 0.05 " | Rectangular Tongue | Barrel Crimp | 0.25 Stud | 1.31 in | 33.27 mm |
