TLVH431 Series

Catalog

IC VREF SHUNT ADJ 1% TO236AB

Part	Current - Cathode	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	Reference Type	Output Type	Voltage - Output (Max)	Voltage - Output (Min/Fixed)	Current - Output	Package / Case	Mounting Type
NXP USA Inc. TLVH431AIDBZR,215	80 µA	SOT-23 (TO-236AB)	85 °C	-40 °C	1 %	Shunt	Adjustable	18 V	1.24 V	70 mA	SC-59 SOT-23-3 TO-236-3	Surface Mount

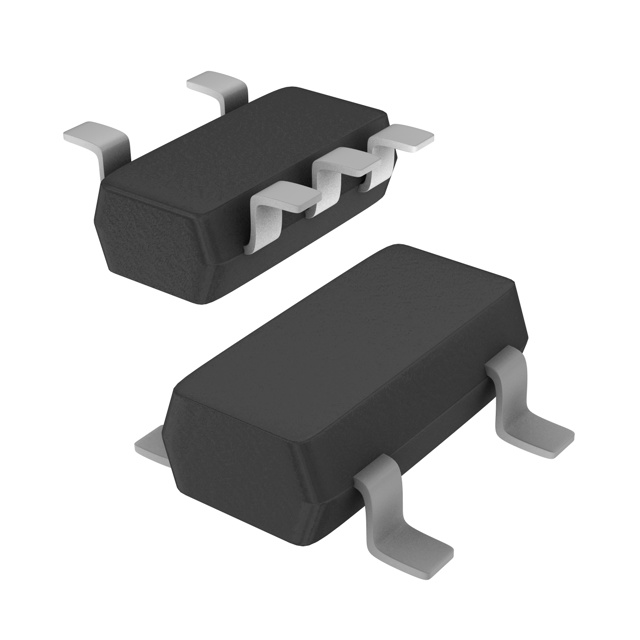

NXP USA Inc. TLVH431DQDBVR,125	80 µA	5-TSOP	125 °C	-40 °C	0.75 %	Shunt	Adjustable	18 V	1.24 V	70 mA		Surface Mount
NXP USA Inc. TLVH431AQDBVR,115	80 µA	5-TSOP	125 °C	-40 °C	1 %	Shunt	Adjustable	18 V	1.24 V	70 mA		Surface Mount
NXP USA Inc. TLVH431AQDBZR,215	80 µA	SOT-23 (TO-236AB)	125 °C	-40 °C	1 %	Shunt	Adjustable	18 V	1.24 V	70 mA	SC-59 SOT-23-3 TO-236-3	Surface Mount
NXP USA Inc. TLVH431CDBZR,215	80 µA	SOT-23 (TO-236AB)	70 °C	0 °C	1.5 %	Shunt	Adjustable	18 V	1.24 V	70 mA	SC-59 SOT-23-3 TO-236-3	Surface Mount
NXP USA Inc. TLVH431QDBVR,115	80 µA	5-TSOP	125 °C	-40 °C	1.5 %	Shunt	Adjustable	18 V	1.24 V	70 mA		Surface Mount
NXP USA Inc. TLVH431AMQDBZR,215	80 µA	SOT-23 (TO-236AB)	125 °C	-40 °C	1 %	Shunt	Adjustable	18 V	1.24 V	70 mA	SC-59 SOT-23-3 TO-236-3	Surface Mount
NXP USA Inc. TLVH431DQDBVR,115	80 µA	5-TSOP	125 °C	-40 °C	0.75 %	Shunt	Adjustable	18 V	1.24 V	70 mA		Surface Mount
NXP USA Inc. TLVH431AQDBVR,125	80 µA	5-TSOP	125 °C	-40 °C	1 %	Shunt	Adjustable	18 V	1.24 V	70 mA		Surface Mount
NXP USA Inc. TLVH431QDBZR,215	80 µA	SOT-23 (TO-236AB)	125 °C	-40 °C	1.5 %	Shunt	Adjustable	18 V	1.24 V	70 mA	SC-59 SOT-23-3 TO-236-3	Surface Mount
