PD-1E-D Series
Manufacturer: Switch Components
Beta
⌘K
ANTI VANDAL SPDT ON-(ON) - IP67
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Mounting Type | Color - Actuator/Cap | Ingress Protection Description | Ingress Protection IP Rating | Quick Connect Size (0.110") | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Circuit | Illumination Type | Color | Switch Function | Current Rating | Actuator Marking | Illumination Voltage (Nominal) | Voltage Rating - DC | Type | Panel Cutout Diameter | Panel Cutout Shape | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

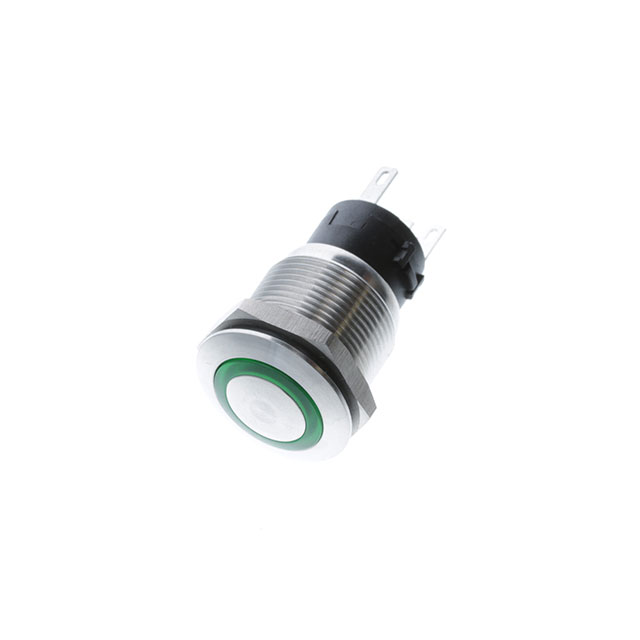

 Switch Components | 6000 Cycles | 10000 Cycles | Front Panel Mount | Silver | Dust Tight Waterproof | IP67 | 0.11 in | Quick Connect | 70 °C | -20 °C | SPDT | LED | Green | On-Mom | 10 A | No Marking | 12 V | 14 V | Illuminated Standard | 19 mm | Circular | Button Round |

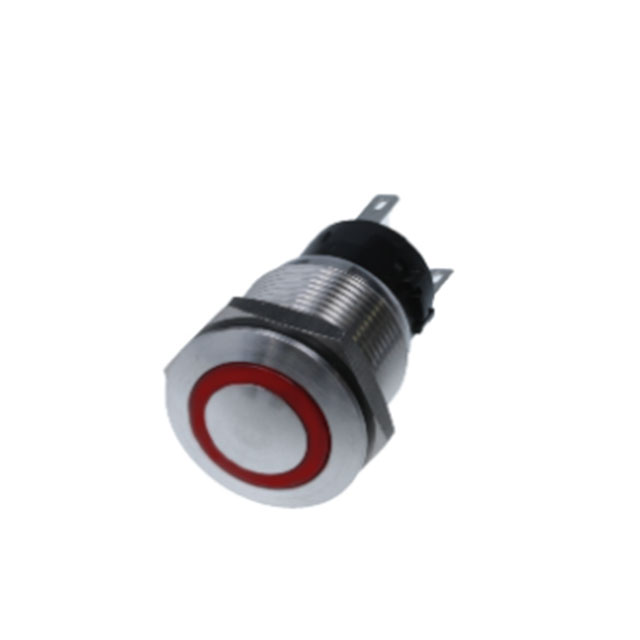

 Switch Components | 6000 Cycles | 10000 Cycles | Front Panel Mount | Silver | Dust Tight Waterproof | IP67 | 0.11 in | Quick Connect | 70 °C | -20 °C | SPDT | LED | Red | On-Mom | 10 A | No Marking | 12 V | 14 V | Illuminated Standard | 19 mm | Circular | Button Round |
