19397100 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY POWER CONNECTORS HAN 10 HP DIRECT M HOOD SIDE ENTRY, M32
| Part | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Housing Material | Thread Size | Size | Lock Location | Housing Color | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Ingress Protection | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

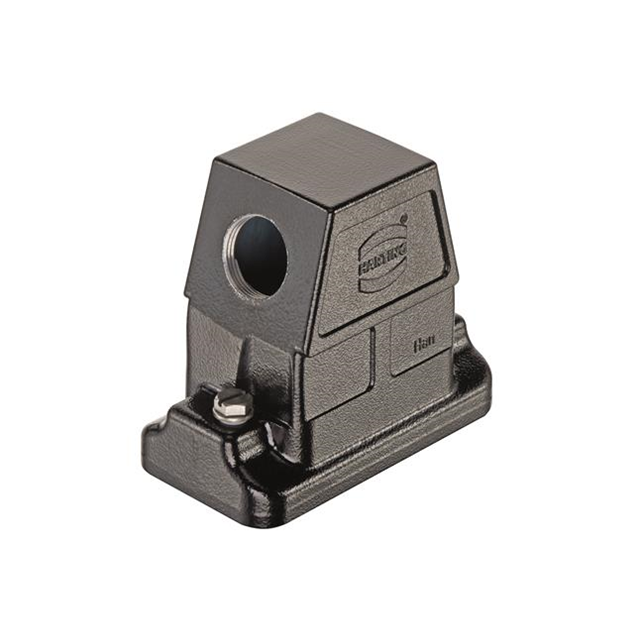

 HARTING | Hood | 125 °C | -40 C | Powder Coated | Aluminum Die Cast | M32 | 10B | Screw Locks on Hood | Black | 57 mm | 3.74 " | 106 mm | 4.173 " | 95 mm | 2.244 " | IP66 IP68 IP69K | Side Entry |

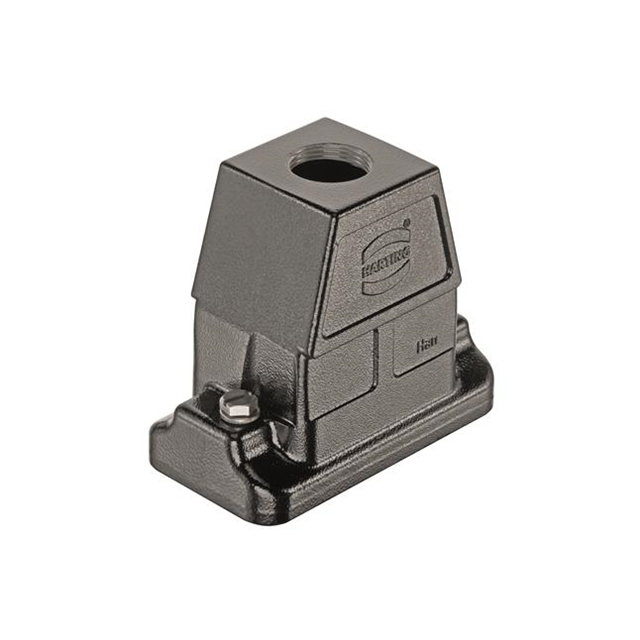

 HARTING | Hood | 125 °C | -40 C | Powder Coated | Aluminum Die Cast | M20 | 10B | Screw Locks on Hood | Black | 57 mm | 3.701 " | 106 mm | 4.173 " | 94 mm | 2.244 " | IP66 IP68 IP69K | Top Entry |
HARTING | Hood | 125 °C | -40 C | Powder Coated | Aluminum Die Cast | M25 | 10B | Screw Locks on Hood | Black | 57 mm | 3.74 " | 106 mm | 4.173 " | 95 mm | 2.244 " | IP66 IP68 IP69K | Side Entry |
HARTING | Hood | 125 °C | -40 C | Powder Coated | Aluminum Die Cast | 10B | Screw Locks on Hood | Black | 57 mm | 3.74 " | 106 mm | 4.173 " | 95 mm | 2.244 " | IP66 IP68 IP69K | Side Entry | |
HARTING | Hood | 125 °C | -40 C | Powder Coated | Aluminum Die Cast | M25 | 10B | Screw Locks on Hood | Black | 57 mm | 3.701 " | 106 mm | 4.173 " | 94 mm | 2.244 " | IP66 IP68 IP69K | Top Entry |
