TPD2E2U06-Q1 Series

Dual 1.5-pF, 5.5-V, ±25-kV ESD protection diode with 5.5-A 8/20-uS surge rating for USB 2.0

Catalog

Dual 1.5-pF, 5.5-V, ±25-kV ESD protection diode with 5.5-A 8/20-uS surge rating for USB 2.0

Part	Unidirectional Channels	Package / Case	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Power - Peak Pulse	Capacitance @ Frequency	Type	Voltage - Reverse Standoff (Typ)	Mounting Type	Grade	Qualification

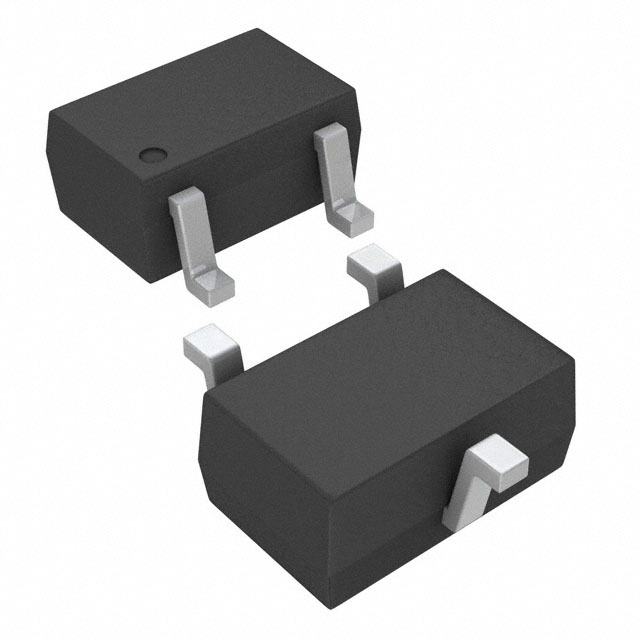

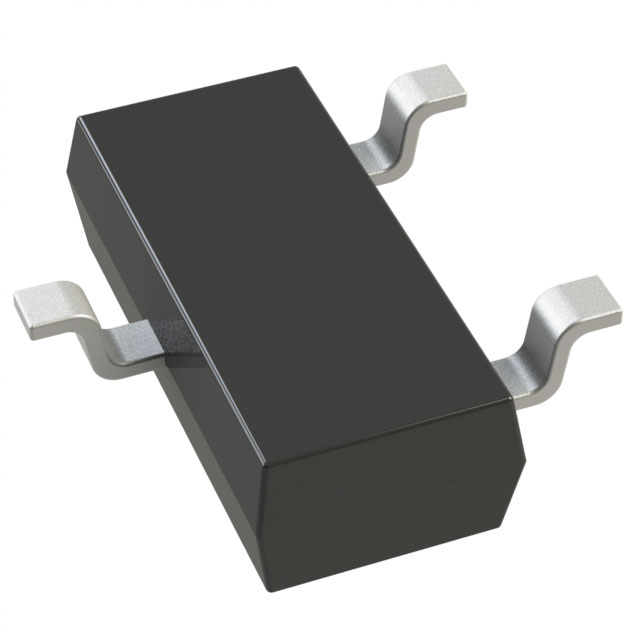

Texas Instruments TPD2E2U06DCKR	2	SC-70 SOT-323	SC-70-3	6.5 V	12.4 V	Ethernet USB 2.0	-40 °C	125 °C	75 W	1.5 pF	Zener	5.5 V	Surface Mount
Texas Instruments TPD2E2U06QDCKRQ1	2	SC-70 SOT-323	SC-70-3	6.5 V	12.4 V	Ethernet	-40 °C	125 ¯C	75 W		Zener	5.5 V	Surface Mount	Automotive	AEC-Q101
Texas Instruments TPD2E2U06DRLR	2	SOT-553	SOT-5	6.5 V	12.4 V	Ethernet	-40 °C	125 °C	85 W		Steering	5.5 V	Surface Mount
Texas Instruments TPD2E2U06QDBZRQ1	2	SC-59 SOT-23-3 TO-236-3	SOT-23-3	6.5 V	12.4 V	Ethernet	-40 °C	125 °C	75 W		Zener	5.5 V	Surface Mount	Automotive	AEC-Q101

Catalog

Dual 1.5-pF, 5.5-V, ±25-kV ESD protection diode with 5.5-A 8/20-uS surge rating for USB 2.0

Key Features

• AEC-Q101 qualifiedIEC 61000-4-2 Level 4 ESD protection±25-kV (contact discharge)±30-kV (air-gap discharge)ISO 10605 (330 pF, 330 Ω) ESD protection±20-kV (contact discharge)±25-kV (air-gap discharge)IO capacitance 1.5-pF (typical)DC breakdown voltage 6.5 V (minimum)Ultra-low leakage current 10-nA (maximum)Low ESD clamping voltageIndustrial temperature range: –40°C to +125°CSmall easy-to-route DBZ and DCK packagesAEC-Q101 qualifiedIEC 61000-4-2 Level 4 ESD protection±25-kV (contact discharge)±30-kV (air-gap discharge)ISO 10605 (330 pF, 330 Ω) ESD protection±20-kV (contact discharge)±25-kV (air-gap discharge)IO capacitance 1.5-pF (typical)DC breakdown voltage 6.5 V (minimum)Ultra-low leakage current 10-nA (maximum)Low ESD clamping voltageIndustrial temperature range: –40°C to +125°CSmall easy-to-route DBZ and DCK packages

Description

The TPD2E2U06-Q1 is a Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diode array with low capacitance. This dual-channel ESD protection diode is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The 1.5-pF line capacitance of the TPD2E2U06-Q1 makes it ideal for protecting interfaces such as USB 2.0, Ethernet, LVDS, antenna, and I2C. The TPD2E2U06-Q1 is a Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diode array with low capacitance. This dual-channel ESD protection diode is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The 1.5-pF line capacitance of the TPD2E2U06-Q1 makes it ideal for protecting interfaces such as USB 2.0, Ethernet, LVDS, antenna, and I2C.
