TVSL02 Series

Catalog

TVS DIODE ESD 9V SMD 0201

Part	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]	Package / Case	Package / Case	Power - Peak Pulse	Type	Capacitance @ Frequency	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Clamping (Max) @ Ipp
Eaton - Electronics Division TVSL02V09C005	9 V	6 A	10 V	General Purpose	17.3 V	1	0603 Metric	0201	80 W	Zener	7.5 pF	0201	-55 °C	85 C	Surface Mount
Eaton - Electronics Division TVSL02V07C006	7 V	8 A	7.5 V	General Purpose	12.8 V	1	0603 Metric	0201	90 W	Zener		0201	-55 °C	85 C	Surface Mount
Eaton - Electronics Division TVSL02V05C018	5 V	8 A	7 V	General Purpose	7.4 V	1	0603 Metric	0201	68 W	Zener	18 pF	0201	-55 °C	85 C	Surface Mount
Eaton - Electronics Division TVSL02V05C005	5 V	6 A	7 V	General Purpose		1	0603 Metric	0201	46 W	Zener	1 MHz 5 pF	0201	-55 °C	85 C	Surface Mount	11.5 V
Eaton - Electronics Division TVSL02V03C011	3 V	8 A	4.7 V	General Purpose		1	0603 Metric	0201	50 W	Zener	1 MHz 11.5 pF	0201	-55 °C	85 C	Surface Mount	6.3 V

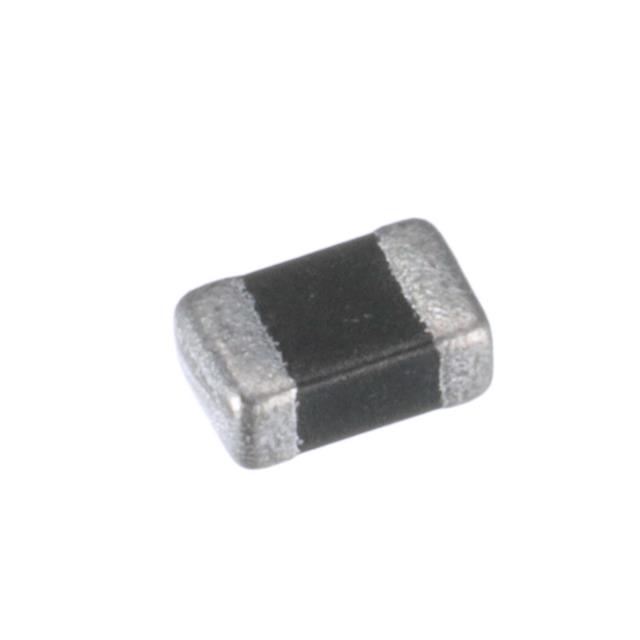

Eaton - Electronics Division TVSL02V12C008	12 V	4 A	15.5 V	General Purpose		1	0603 Metric	0201	60 W	Zener		0201	-55 °C	85 C	Surface Mount	19.4 V
