320577 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

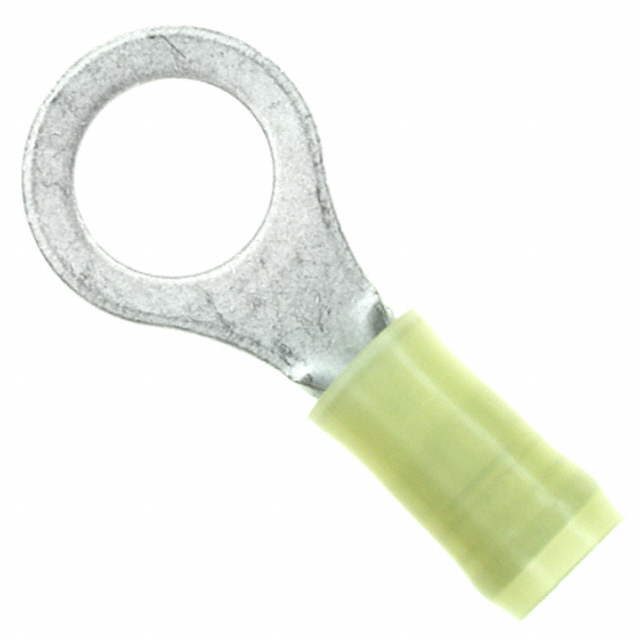

TERMINAL,PIDG R 12-10 3/8
| Part | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Thickness | Thickness | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Termination | Insulation | Terminal Type | Mounting Type | Features | Color | Contact Material | Length - Overall [x] | Length - Overall [x] | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Overall | Insulation Diameter [Max] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3/8 Stud | 12 AWG | 10 AWG | Nylon Polyamide (PA) | 0.04 in | 1.02 mm | 0.15 " | 3.81 mm | 0.23 in | 5.84 mm | Crimp | Insulated | Circular | Free Hanging (In-Line) | Serrated Termination | Yellow | Copper | 35.92 mm | 1.414 " | Tin | 0.593 in | 15.06 mm | |||
 TE Connectivity Raychem Cable Protection | 3/8 Stud | Nylon Polyamide (PA) | 0.04 in | 1.02 mm | 0.095 " | 2.41 mm | 0.2 " | Crimp | Insulated | Circular | Free Hanging (In-Line) | Insulation Restriction Serrated Termination | Yellow Yellow Stripe | Copper | 1.486 in | Tin | 0.593 in | 15.06 mm | 37.74 mm | 5.08 mm | 12 AWG |
