FAD1-12038 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 120X38.5MM 48VDC WIRE

Part	Material - Blade	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Width [y]	Weight	Weight	Approval Agency	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Noise	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Termination	Air Flow	Air Flow	Fan Type	RPM	Voltage - Rated	Current Rating (Amps)	Weight [custom]	Weight [custom]
Qualtek FAD1-12038EBMW12	Plastic	Plastic	43.2 VDC	52.8 VDC	38.5 mm	234.96 g	0.518 lb	CE cURus TUV	6.24 W	120 mm	120 mm	45 dB(A)	0.228 in H2O	56.8 Pa	70 °C	-10 °C	Ball	2 Wire Leads	2.7 m³/min	96.3 CFM	Tubeaxial	2540 RPM	48 VDC

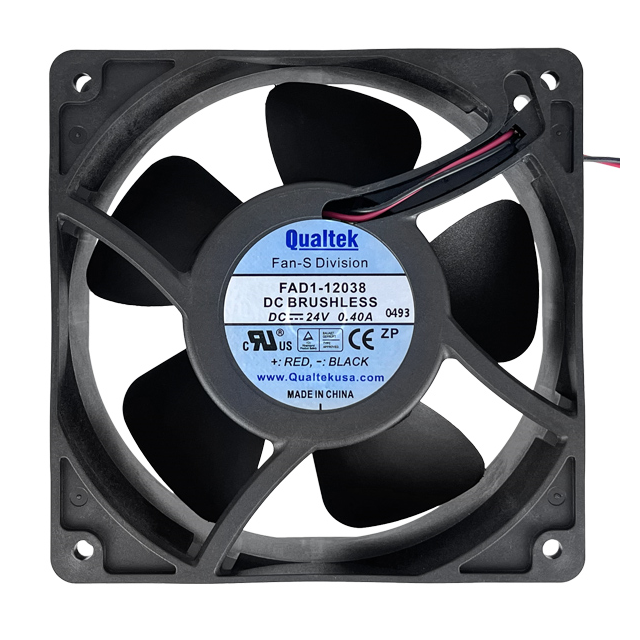

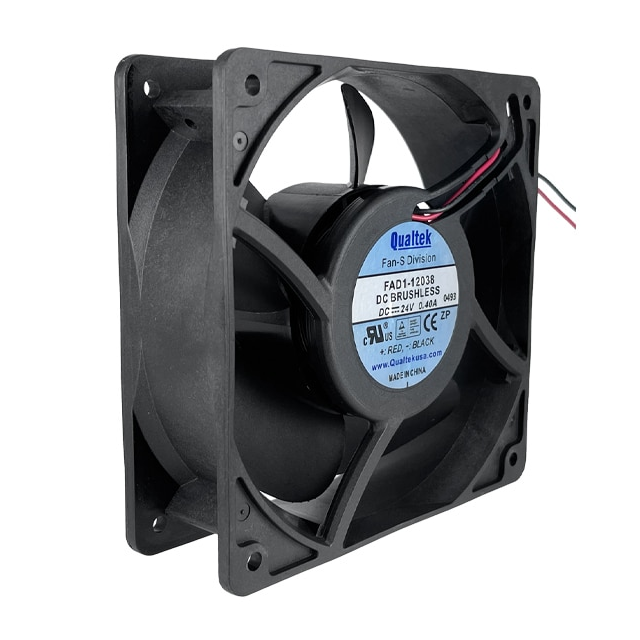

Qualtek FAD1-12038EBHW12	Plastic	Plastic	43.2 VDC	52.8 VDC	38.5 mm	234.96 g	0.518 lb	CE cURus TUV	8.64 W	120 mm	120 mm	46.7 dB(A)	0.265 in H2O	66 Pa	70 °C	-10 °C	Ball	2 Wire Leads	2.95 m³/min	105.5 CFM	Tubeaxial	2800 RPM	48 VDC	0.18 A
Qualtek FAD1-12038EBJW32	Plastic	Aluminum	43.2 VDC	52.8 VDC	38.5 mm			CE cURus TUV	10.56 W	120 mm	120 mm	48 dB	0.335 in H2O	83.4 Pa	70 °C	-10 °C	Ball	2 Wire Leads	3.36 m³/min	120.1 CFM	Tubeaxial	3200 RPM	48 VDC	0.22 A	0.656 lb	297.56 g
Qualtek FAD1-12038DSJW32	Plastic	Aluminum	21.6 VDC	26.4 VDC	38.5 mm			CE cURus TUV	9.12 W	120 mm	120 mm	48 dB	0.335 in H2O	83.4 Pa	60 °C	-10 °C	Sleeve	2 Wire Leads	3.36 m³/min	120.1 CFM	Tubeaxial	3200 RPM	24 VDC	0.38 A	0.656 lb	297.56 g
Qualtek FAD1-12738DBTW12	Plastic	Plastic	21.6 VDC	26.4 VDC	38.5 mm	370.13 g	0.816 lb	CE cURus TUV	26.4 W	5 in	5 "	64.5 dB(A)	0.63 in H2O	156.9 Pa	70 °C	-10 °C	Ball	2 Wire Leads	6.78 m³/min	242 CFM	Tubeaxial	4500 RPM	24 VDC	1.1 A
Qualtek FAD1-12038CBHW12					38.5 mm	234.96 g	0.518 lb	CE cURus TUV		120 mm	120 mm	46.7 dB(A)	0.265 in H2O	66 Pa	70 °C	-10 °C	Ball	2 Wire Leads	2.95 m³/min	105.5 CFM	Tubeaxial	2800 RPM	12 VDC
Qualtek FAD1-12038DBHW12	Plastic	Plastic	21.6 VDC	26.4 VDC	38.5 mm	234.96 g	0.518 lb	CE cURus TUV	6.24 W	120 mm	120 mm	46.7 dB(A)	0.265 in H2O	66 Pa	70 °C	-10 °C	Ball	2 Wire Leads	2.95 m³/min	105.5 CFM	Tubeaxial	2800 RPM	24 VDC	0.26 A
Qualtek FAD1-12038DBMW12	Plastic	Plastic	21.6 VDC	26.4 VDC	38.5 mm	234.96 g	0.518 lb	CE cURus TUV	4.8 W	120 mm	120 mm	45 dB(A)	0.228 in H2O	56.8 Pa	70 °C	-10 °C	Ball	2 Wire Leads	2.7 m³/min	96.3 CFM	Tubeaxial	2540 RPM	24 VDC	0.2 A
Qualtek FAD1-12038EBJW12	Plastic	Plastic	43.2 VDC	52.8 VDC	38.5 mm	234.96 g	0.518 lb	CE cURus TUV	10.6 W	120 mm	120 mm	48 dB	0.335 in H2O	83.4 Pa	70 °C	-10 °C	Ball	2 Wire Leads	3.36 m³/min	120.1 CFM	Tubeaxial	3200 RPM	48 VDC	0.22 A
