BD5230NVX-2C Series

Nano Energy™, 3.0V, Adjustable Delay Voltage Detector for Automotive

Catalog

Nano Energy™, 3.0V, Adjustable Delay Voltage Detector for Automotive

Part	Type	Grade	Output	Reset	Number of Voltages Monitored	Reset Timeout [Min]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Threshold	Mounting Type	Package / Case	Qualification

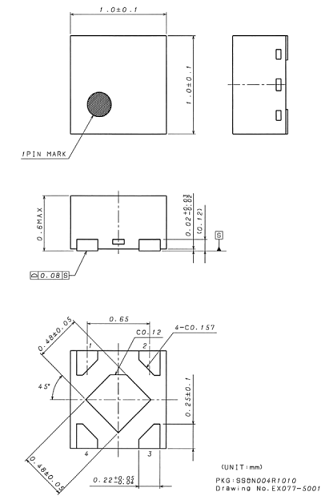

Rohm Semiconductor BD5230NVX-2CTL	Voltage Detector	Automotive	Open Drain or Open Collector	Active Low	1	27.7 ms	SSON004R1010	-40 °C	125 °C	3 V	Surface Mount	4-UDFN Exposed Pad	AEC-Q100
Rohm Semiconductor BD5230G-TR	Voltage Detector		Open Drain or Open Collector	Active Low	1		5-SSOP	-40 °C	105 °C	3 V	Surface Mount	SC-74A SOT-753
Rohm Semiconductor BD5230FVE-TR	Voltage Detector		Open Drain or Open Collector	Active Low	1		5-VSOF	-40 °C	105 °C	3 V	Surface Mount	SOT-665

Catalog

Nano Energy™, 3.0V, Adjustable Delay Voltage Detector for Automotive

Key Features

• AEC-Q100 Qualified (Grade 1), Nano Energy™, Delay Time Setting Controlled by External Capacitor, Nch Open Drain Output Type, Miniature Surface-mount Package

Description

BD52xxNVX-2C series, Free Time Delay Setting CMOS Voltage Detector ICs are highly accurate, with ultra-low current consumption feature that uses CMOS process. Delay time setting can be control by an external capacitor. The lineup includes N-channel open drain output. The devices are available for specific detection voltage is 1.4V, 1.6V, ranging from 2.6 V to 3.1 V with 0.1 V increment. The time delay has ±50% accuracy in the overall operating temperature range of -40℃ to 125℃.
