FUS 600V T/D CLASS J 500A
Description
AI

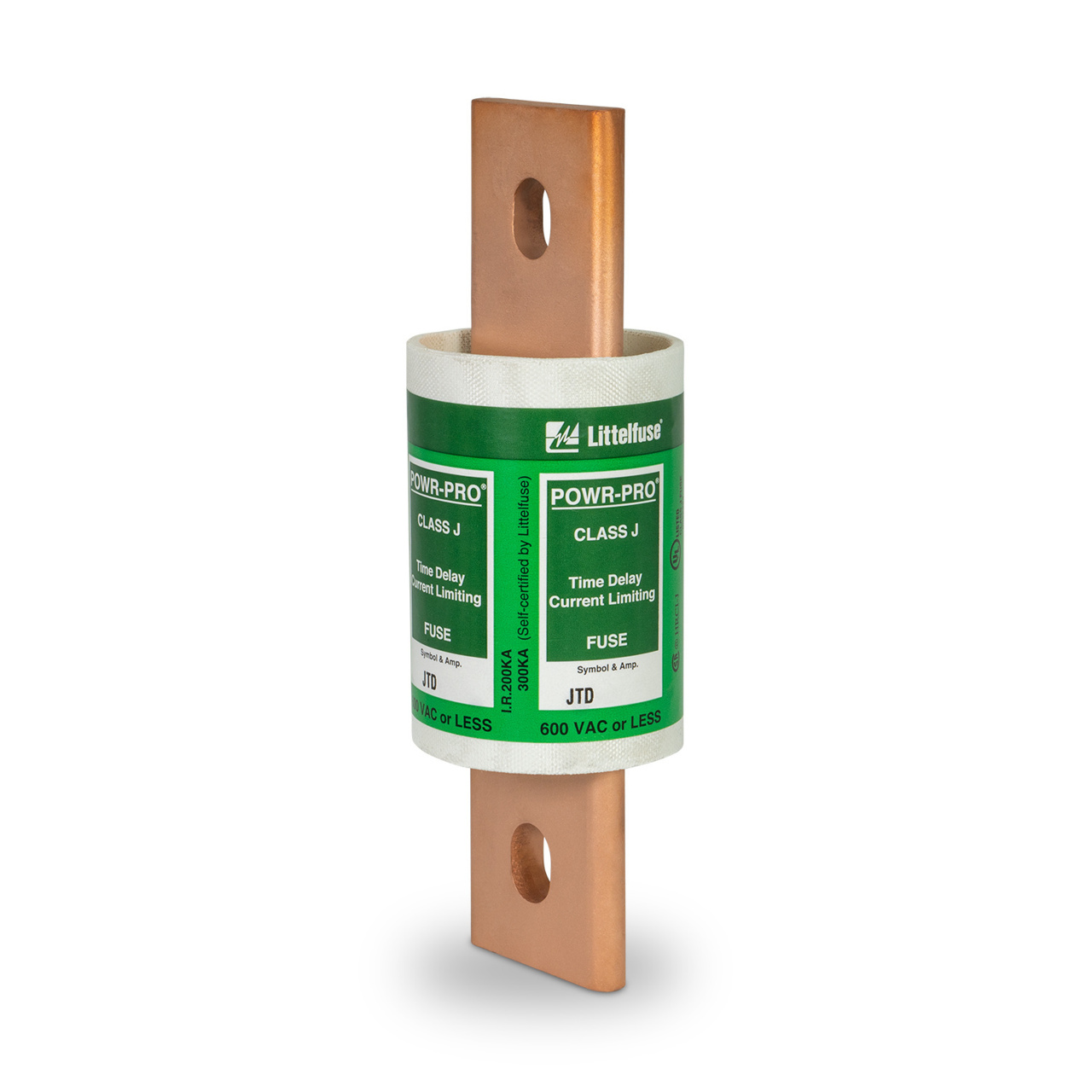

JTD500 is a Class J fuse with an ampere rating of 500 and knife-blade-style construction.
Beta
⌘K
FUS 600V T/D CLASS J 500A
FUS 600V T/D CLASS J 500A
| Part | Approval Agency | Breaking Capacity @ Rated Voltage | Package / Case | Fuse Type | Mounting Type | Class | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Response Time | Voltage Rating - AC | Voltage Rating - DC | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Littelfuse/Commercial Vehicle Products | CE CSA UL | 20 kA 200 kA | Cartridge Non-Standard | Cartridge | Requires Holder | J | 6 A | 57.2 mm | 0.811 Dia | 20.6 mm | 2.252 L | Slow Blow | 600 VAC | |||
 Littelfuse/Commercial Vehicle Products | CE CSA UL | 20 kA 200 kA | Cylindrical Blade Terminals | Cartridge | Requires Holder | J | 500 A | 2.5 in | 2.5 " | Slow Blow | 600 VAC | 500 V | 3.752 " | 95.3 mm |
