FA5S016H Series
Manufacturer: JAE Electronics
Beta
⌘K

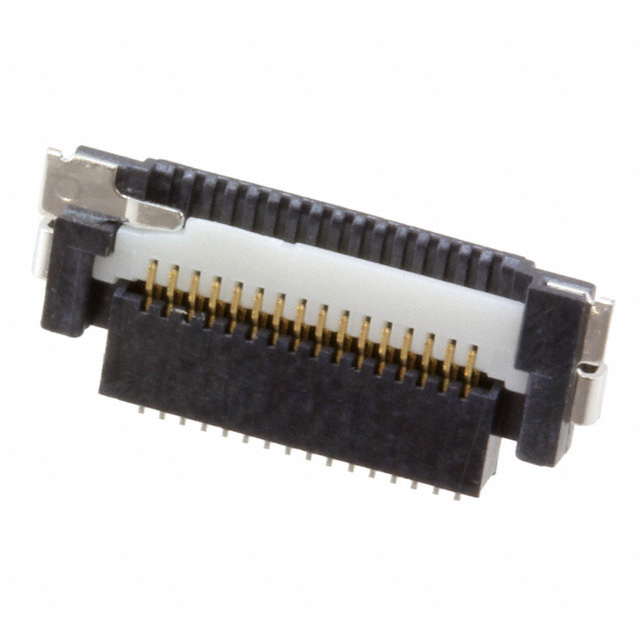

CONN FPC BOTTOM 16POS 0.5MM R/A
| Part | Mating Cycles | Actuator Color | Current Rating (Amps) | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Termination | FFC, FCB Thickness | Contact Material | Housing Material | Connector/Contact Type | Height Above Board [z] | Height Above Board [z] | Actuator Material | Number of Positions | Locking Feature | Cable End Type | Pitch | Pitch | Features | Mounting Type | Flat Flex Type | Contact Finish | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 20 | White | 0.8 A | Black | 85 °C | -40 C | UL94 V-0 | Solder | 0.3 mm | Copper Alloy | Glass Filled Liquid Crystal Polymer (LCP) | Contacts Bottom | 1.45 mm | 0.057 in | Glass Filled Nylon Polyamide (PA) | 16 | Flip Lock | Tapered | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Right Angle Surface Mount | FPC | Gold | 50 V |
