NPTC291 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

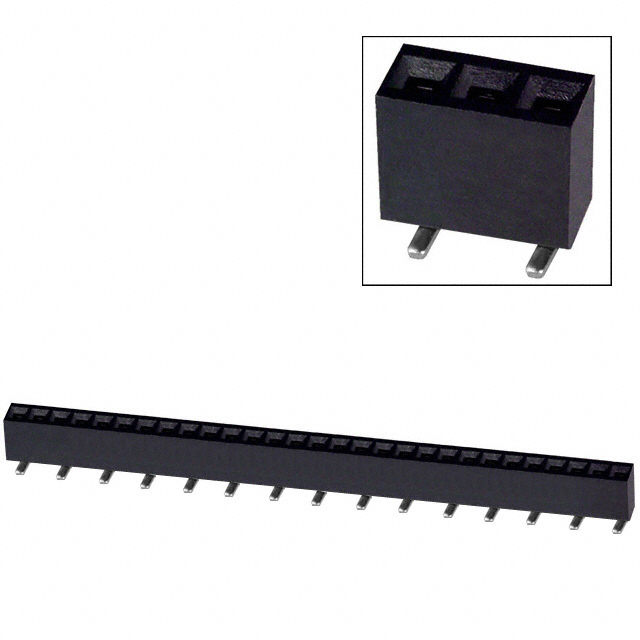

CONN HDR 29POS 0.1 TIN SMD
| Part | Insulation Material | Contact Shape | Contact Material | Contact Finish - Post | Insulation Color | Insulation Height | Insulation Height | Material Flammability Rating | Fastening Type | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Mounting Type | Voltage Rating | Number of Positions Loaded | Termination | Connector Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Square | Phosphor Bronze | Tin | Black | 0.28 in | 7.1 mm | UL94 V-0 | Push-Pull | 29 | 1 | -40 C | 105 ░C | 3 A | 0.1 " | 2.54 mm | Surface Mount | 250 V | All | Solder | Header Top or Bottom Entry | Female Socket |
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Square | Phosphor Bronze | Tin | 0.28 in | 7.1 mm | UL94 V-0 | Push-Pull | 29 | 1 | -40 C | 105 ░C | 3 A | 0.1 " | 2.54 mm | Surface Mount | 250 V | All | Solder | Header Top or Bottom Entry | Female Socket |
