TR9WA8000 Series

Catalog

AC/DC DESKTOP ADAPTER 5V 40W

Part	No Load Power Consumption	Efficiency	Approval Agency	Output Connector [x]	Output Connector [diameter]	Output Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Input Connector	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Polarization	Input Type	Current - Output (Max) [Max]	Region Utilized	Cord Length	Cord Length	Form	Applications	Voltage - Input [Max]	Voltage - Input [Min]
GlobTek, Inc. TR9WA8000CCPIM(R6B)	75 mW	Level VI	CB CE cETLus ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	11 mm	2.1 mm 5.5 mm	Barrel Plug	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	40 W	IEC 320-C18	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 ░C	40 °C	5 V	Positive Center	Cord (Sold Separately)	8 A	International	1.2 m	47.2 in	Desktop (Class II)	Household Appliances ITE (Commercial) Medical	264 VAC	90 VAC

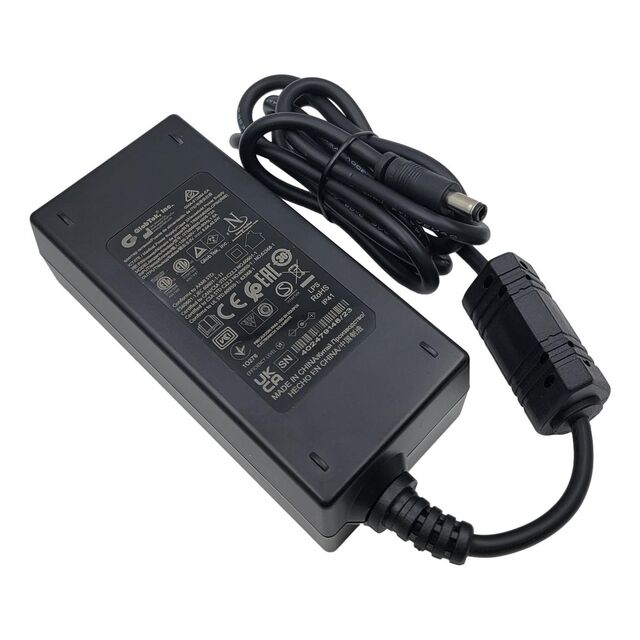

GlobTek, Inc. TR9WA8000LCPIM(R6B)	75 mW	Level VI	CB CE cETLus ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	11 mm	2.5 mm 5.5 mm	Barrel Plug	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	40 W	IEC 320-C18	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 ░C	40 °C	5 V	Positive Center	Cord (Sold Separately)	8 A	International	1.2 m	47.2 in	Desktop (Class II)	Household Appliances ITE (Commercial) Medical	264 VAC	90 VAC
